CY9AF312KQN-G-AVE2
RoHS
RoHS compliant

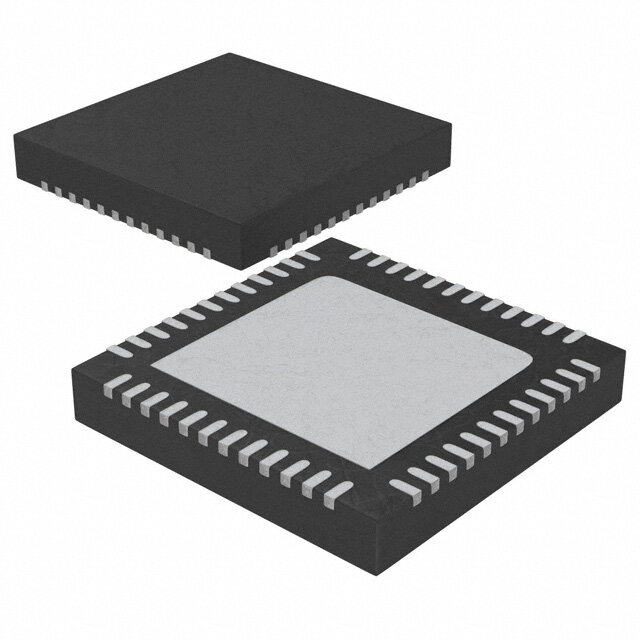

RoHS compliantPackage 48-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 160KB FLASH 48QFN
PDF
/
Buying Options
Total Price: USD $75.43
Unit Price: USD $75.4262
≥1 USD $75.4262
≥10 USD $61.8887
≥100 USD $59.9545
≥500 USD $58.0203
≥1000 USD $56.0861
Inventory: 1174
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mounting Type Surface Mount
Package / Case 48-VFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~105°C TA
Packaging Tray
Series FM3 MB9A310K
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
Terminal Finish Tin (Sn)
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 4.5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PQCC-N48
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 2.7V
Oscillator Type Internal
Number of I/O 36
Speed 40MHz
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M3
Peripherals DMA, LVD, POR, PWM, WDT
Clock Frequency 48MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 160KB 160K x 8
Connectivity CSIO, I2C, LINbus, UART/USART, USB
Bit Size 32
Data Converter A/D 8x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels NO
ROM (words) 163840
On Chip Program ROM Width 8
RAM (bytes) 16384
Dimensions
Height Seated (Max) 0.9mm
Length 7mm
Width 7mm
Compliance
RoHS Status ROHS3 Compliant
