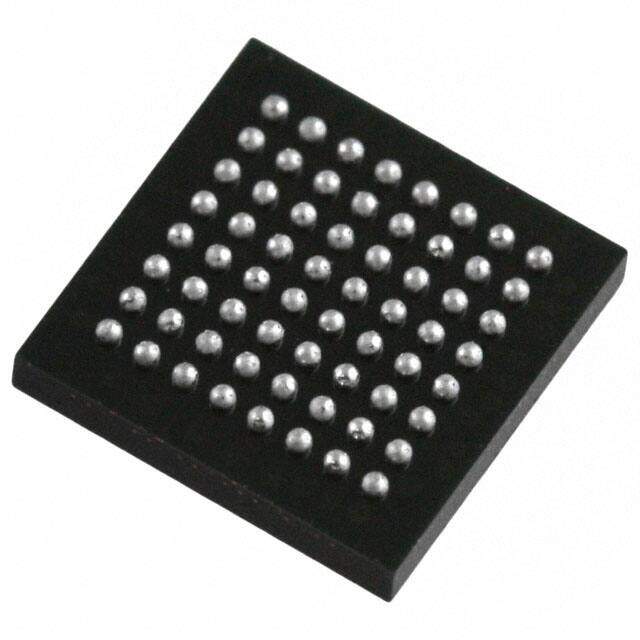

LC4064ZE-7MN64C
RoHS
RoHS compliant
RoHS compliantPackage 64-TFBGA, CSPBGA
Category Integrated Circuits (ICs) / Embedded - CPLDs (Complex Programmable Logic Devices)
Description
YES 64-TFBGA CSPBGA 2000 LC4064 complex programmable logic device 241MHz 80muA 5mm 7.5ns
PDF
/
Buying Options
Total Price: USD $45.71
Unit Price: USD $45.71115
≥1 USD $45.71115
≥10 USD $37.506
≥100 USD $36.33465
≥500 USD $35.16235
≥1000 USD $33.99005
Inventory: 1152
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 5mm
Length 5mm
Height Seated (Max) 1.1mm
Technical
Voltage Supply - Internal 1.7V~1.9V
Number of Dedicated Inputs 4
JTAG BST YES
Number of Macro Cells 64
Output Function MACROCELL
Number of Logic Elements/Cells 4
Turn On Delay Time 7.5 ns
Propagation Delay 7.5 ns
Memory Type EEPROM
Nominal Supply Current 80μA
Number of I/O 48
Operating Supply Current 80μA
Min Supply Voltage 1.7V
Max Supply Voltage 1.9V
Programmable Type In System Programmable
Operating Supply Voltage 1.8V
Qualification Status Not Qualified
Pin Count 64
Base Part Number LC4064
Frequency 241MHz
Reach Compliance Code not_compliant
Terminal Pitch 0.5mm
Supply Voltage 1.8V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Programmable Logic Devices
Additional Feature YES
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
ECCN Code EAR99
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e1
Series ispMACH? 4000ZE
Published 2000
Packaging Tray
Operating Temperature 0°C~90°C TJ
Physical
Package / Case 64-TFBGA, CSPBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
