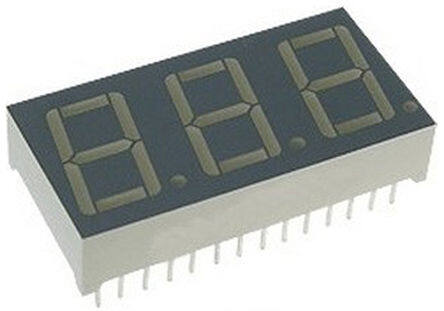

BC56-11SYKWA
RoHS
RoHS compliant
RoHS compliantPackage 28-DIP (0.600, 15.24mm)
Category Optoelectronics / Display Modules - LED Character and Numeric
Description
KINGBRIGHT BC56-11SYKWA7-Segment LED Display, Mechanically Rugged, 3, 14.22 mm, Yellow, Common Cathode, 120 mcd, 20 mA
PDF
/
Inventory: 6117
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Character Height 14.22mm
Height 37.592mm
Technical
Character Width 8mm
Common Pin Common Cathode
Digit/Alpha Size 0.56 14.22mm
Number of Segments 7
Number of Characters 3
Display Type 7-Segment
Wavelength - Peak 590nm
Millicandela Rating 120mcd
Luminous Intensity 120 mcd
Forward Current 20mA
Voltage - Forward (Vf) (Typ) 2V
Power Dissipation-Max 75mW
Number of Functions 3
HTS Code 8541.40.20.00
Color Yellow
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.480 Hx0.748W x 0.319 D 37.60mmx19.00mmx8.10mm
Published 2013
Packaging Tube
Physical
Package / Case 28-DIP (0.600, 15.24mm)
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
