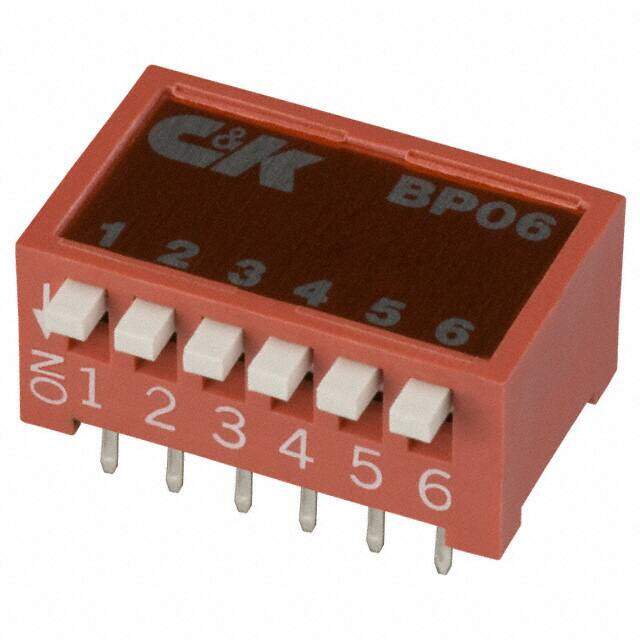

BP06YE
RoHS
/
Package /
Category Switches / DIP Switches
Description
SWITCH SLIDE DIP SPST 100MA 5V
PDF
/
Buying Options
Total Price: USD $3.09
Unit Price: USD $3.086628
≥1 USD $3.086628
≥208 USD $1.2315
≥494 USD $1.1908
≥988 USD $1.169794
Inventory: 8400
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Above Board 0.315 8.00mm
Actuator Length 2mm
Length 0.706 17.93mm
Technical
Actuator Level Raised
Washable No
Mechanical Life 1,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 1,000 Cycles
Max Current Rating 100mA
Circuit SPST
Actuator Type Slide (Standard)
Termination Style PC Pin
Contact Finish Tin
Terminal Pitch 2.54mm
Orientation Straight
Pitch 0.100 2.54mm Full
Current Rating (Amps) 100mA
Voltage - Rated DC 24V
Voltage - Rated 5VDC
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Number of Positions 6
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Epoxy Sealed Terminals
Series BP
Published 1997
Packaging Tube
Operating Temperature -20°C~60°C
Physical
Actuator Material Glass, Polyester
Body Material Polyester (PET), Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Phosphor Bronze
