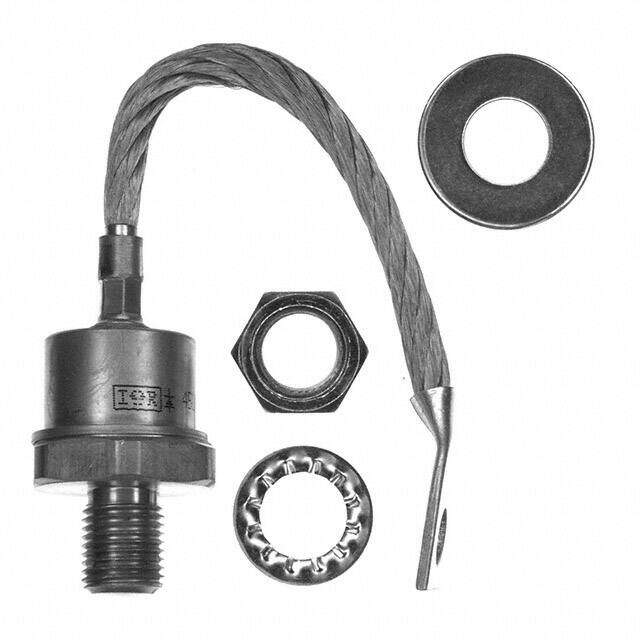

SD150R20PC
RoHS
/
Package DO-205AC, DO-30, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 2KV 150A DO205
PDF
/
Inventory: 1818
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis, Stud
Mounting Type Stud Mount
Package / Case DO-205AC, DO-30, Stud
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2001
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
Additional Feature HIGH SURGE CAPABILITY
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form HIGH CURRENT CABLE
Reach Compliance Code unknown
Pin Count 1
JESD-30 Code O-CUPM-H1
Qualification Status Not Qualified
Operating Temperature (Max) 180°C
Number of Elements 1
Configuration SINGLE
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 15mA @ 2000V
Voltage - Forward (Vf) (Max) @ If 1.5V @ 470A
Case Connection ANODE
Operating Temperature - Junction -40°C~180°C
Application HIGH VOLTAGE HIGH POWER
Voltage - DC Reverse (Vr) (Max) 2000V
Max Reverse Voltage (DC) 2kV
Average Rectified Current 150A
Number of Phases 1
Non-rep Pk Forward Current-Max 3770A
Compliance
RoHS Status Non-RoHS Compliant
