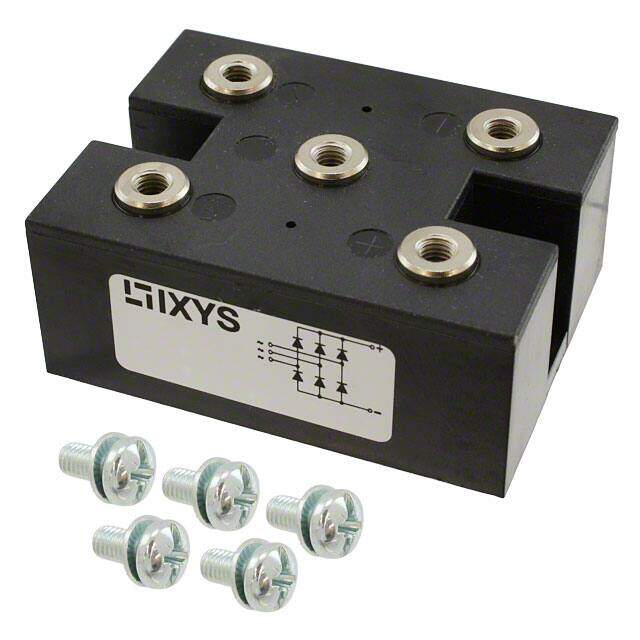

VUO125-12NO7
RoHS
RoHS compliant
RoHS compliantPackage PWS-C
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 3P 1.2KV 166A PWS-C
PDF
/
Buying Options
Total Price: USD $110.06
Unit Price: USD $110.06172
≥1 USD $110.06172
≥200 USD $43.916505
≥500 USD $42.448683
≥1000 USD $41.723962
Inventory: 5301
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 50mm
Length 67mm
Height 31mm
Technical
Max Forward Surge Current (Ifsm) 1.95kA
Peak Non-Repetitive Surge Current 1.95kA
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Reverse Current 300μA
Number of Phases 3
Average Rectified Current 166A
Forward Voltage 1.3V
Max Surge Current 1.8kA
Max Reverse Leakage Current 2mA
Forward Current 150A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.07V @ 50A
Power Dissipation 205W
Current - Reverse Leakage @ Vr 200μA @ 1200V
Diode Type Three Phase
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
Base Part Number VUO125
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2000
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case PWS-C
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Supply Chain
Factory Lead Time 16 Weeks
