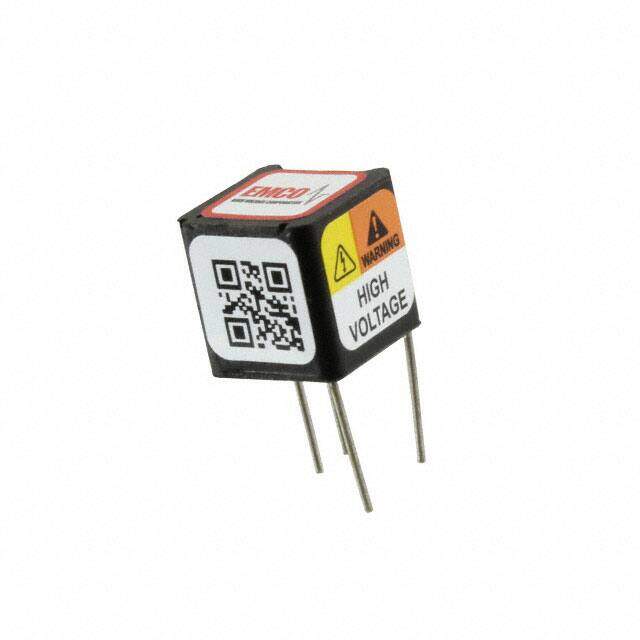

Q04CT-12
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DUAL O/P, DC-HV DC PCB MOUNT, 0.
PDF
/
Buying Options
Total Price: USD $147.19
Unit Price: USD $147.1916
≥1 USD $147.1916
≥10 USD $138.86
≥100 USD $131
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -25°C~70°C
Packaging Box
Published 2015
Series XP EMCO - Q (0.5W)
Size / Dimension 0.50Lx0.50W x 0.50 H 12.7mmx12.7mmx12.7mm
Feature Proportional Output
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type High Voltage - Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 500mW
Depth 12.7mm
Number of Outputs 2
Voltage - Isolation 500V
Max Output Current 1.25mA
Voltage - Output 1 200V
Voltage - Input (Min) 0.7V
Current - Output (Max) 1.25mA 1.25mA
Voltage - Output 2 -200V
Current - Output 1 1.25mA
Max Output Power 500mW
Current - Output 2 1.25mA
Max Input Voltage (DC) 12V
Min Input Voltage (DC) 700mV
Dimensions
Height 12.7mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
