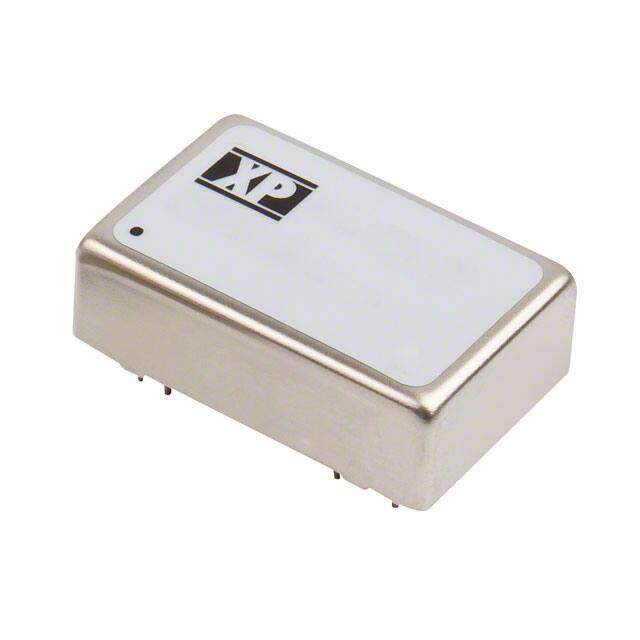

JCJ1024D15
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCJ1024D15 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 18 V, 36 V, 10 W, 15 V
PDF
/
Buying Options
Total Price: USD $32.86
Unit Price: USD $32.86
≥1 USD $32.86
≥10 USD $31
≥100 USD $29.24528
≥1000 USD $26.0282
Inventory: 4750
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 11-DIP Module, 8 Leads
Weight 20g
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2009
Series JCJ (10W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type Isolated Module
Applications ITE (Commercial)
Power Rating 10W
Max Power Dissipation 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 31.75mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-P8
Number of Outputs 2
Efficiency 90%
Voltage - Isolation 1.5kV
Output Voltage 15V
Max Output Current 333mA
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 333mA 333mA
Output Current 333mA
Output Power 10W
Voltage - Output 2 -15V
Current - Output 1 333mA
Max Output Power 10W
Current - Output 2 333mA
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V
Dimensions
Height 10.16mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
