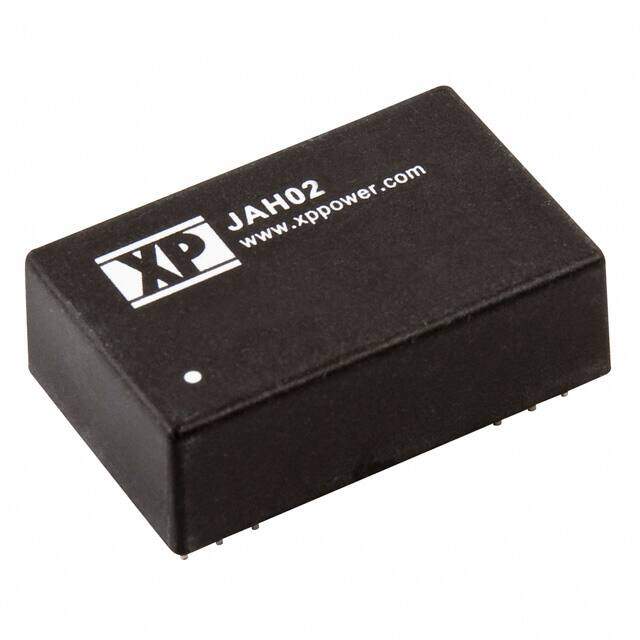

JAH0212S05
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JAH0212S05 Isolated Board Mount DC/DC Converter, 1kV Isolation, Fixed, 1 Output, 10.8 V, 13.2 V, 2 W, 5 V
PDF
/
Buying Options
Total Price: USD $19.1
Unit Price: USD $19.1012
≥1 USD $19.1012
≥10 USD $18.02
≥100 USD $17
≥500 USD $16.03774
≥1000 USD $15.12994
Inventory: 7298
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 20.32mm
Height 10.16mm
Technical
Min Input Voltage (DC) 10.8V
Max Input Voltage (DC) 13.2V
Nominal Output Voltage 5V
Max Output Power 2W
Nominal Input Voltage 12V
Current - Output 1 400mA
Output Power 2W
Output Current 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Max Output Current 400mA
Output Voltage 5V
Voltage - Input (Max) 13.2V
Voltage - Isolation 1kV
Efficiency 64%
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 31.75mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 2W
Power Rating 2W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series JAH (2W)
Published 2007
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 24-DIP Module, 12 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
