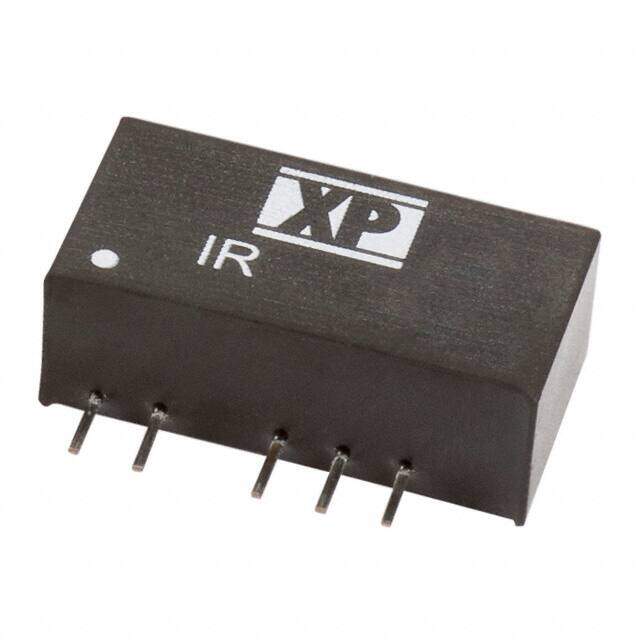

IR0515S image
Favorite
IR0515S image
Favorite

IR0515S

XP Power
RoHS
RoHS RoHS compliant
Package 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER IR0515S Isolated Board Mount DC/DC Converter, Semi Regulated, Through Hole, 3W, 15V, 100mA, -15V, 100mA
PDF
/
Buying Options
Total Price: USD $10.34
Unit Price: USD $10.33712
≥1 USD $10.33712
≥10 USD $9.752
≥100 USD $9.2
Inventory: 376
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height 9.906mm

Technical

Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Current - Output 2 100mA
Max Output Power 3W
Nominal Input Voltage 5V
Current - Output 1 100mA
Voltage - Output 2 -15V
Output Power 3W
Output Current 100mA
Max Output Current 100mA
Output Voltage 15V
Voltage - Isolation 1kV
Efficiency 86%
Number of Outputs 2
Depth 19.5mm
Max Power Dissipation 3W
Power Rating 3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.77Lx0.28W x 0.39 H 19.5mmx7.2mmx10.0mm
Series IR (3W)
Published 2011
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 10 Weeks
