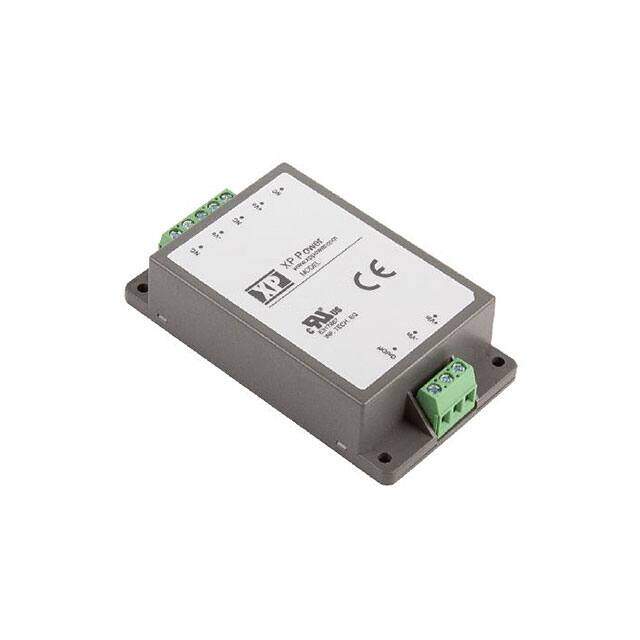

DTE2024S24
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 24V 20W
PDF
/
Buying Options
Total Price: USD $72
Unit Price: USD $72
≥1 USD $72
≥10 USD $67.92453
≥100 USD $64.07974
≥500 USD $60.45259
≥1000 USD $57.03074
≥3000 USD $53.80259
Inventory: 8440
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series DTE20 (20W)
Size / Dimension 3.78Lx2.13W x 0.92 H 96.0mmx54.0mmx23.3mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 20W
Depth 96mm
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 90%
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Output Power 20W
Current - Output 1 835mA
Max Output Power 20W
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 9V
Dimensions
Height 23.368mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
