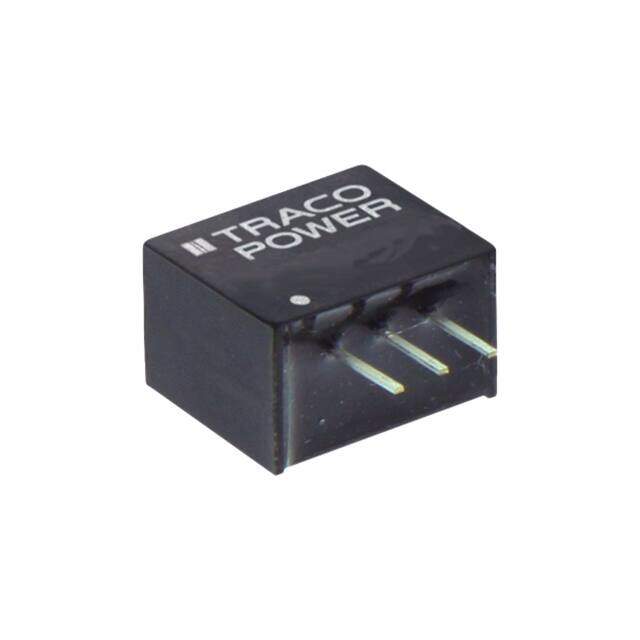

TSRN 1-2425
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 2.5V 2.5W
PDF
/
Buying Options
Total Price: USD $11.61
Unit Price: USD $11.61479
≥1 USD $11.61479
≥10 USD $10.95735
≥100 USD $10.33712
≥500 USD $9.752
≥1000 USD $9.2
≥3000 USD $8.67925
Inventory: 4930
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 3-SIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Published 2011
Series TSRN 1
Size / Dimension 0.46Lx0.30W x 0.40 H 11.7mmx7.5mmx10.2mm
Feature OTP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Power (Watts) 2.5W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-T3
Number of Outputs 1
Efficiency 83%
Voltage - Input (Max) 42V
Output Voltage 2.5V
Voltage - Output 1 2.5V
Voltage - Input (Min) 4.6V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 1A
Total Power Output-Max 2.5W
Dimensions
Width 7.5mm
Compliance
RoHS Status ROHS3 Compliant
