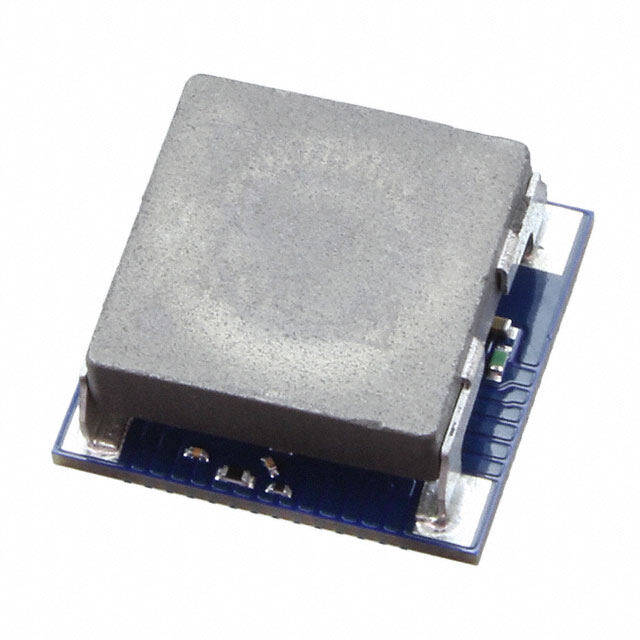

TPSM846C24MOLR
RoHS
RoHS compliant
RoHS compliantPackage 59-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.5-2V
PDF
/
Buying Options
Total Price: USD $20.72
Unit Price: USD $20.7152
≥1 USD $20.7152
≥10 USD $19.10304
≥100 USD $18.244864
≥500 USD $16.313
Inventory: 987
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 5.7mm
Height 5.9mm
Technical
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Control Mode VOLTAGE-MODE
Output Current 35A
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.5V~2V
Output Voltage 2V
Voltage - Input (Max) 15V
Efficiency 91%
Number of Outputs 1
Base Part Number TPSM846
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BUTT
Terminal Position UNSPECIFIED
Additional Feature OUTPUT VOLTAGE= 0.5V TO 2V
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 59
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature OCP, OTP, OVP, UVLO
Size / Dimension 0.63Lx0.59W x 0.25 H 16.0mmx15.0mmx6.4mm
Series TPS
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Number of Pins 59
Surface Mount YES
Package / Case 59-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 8 Weeks
