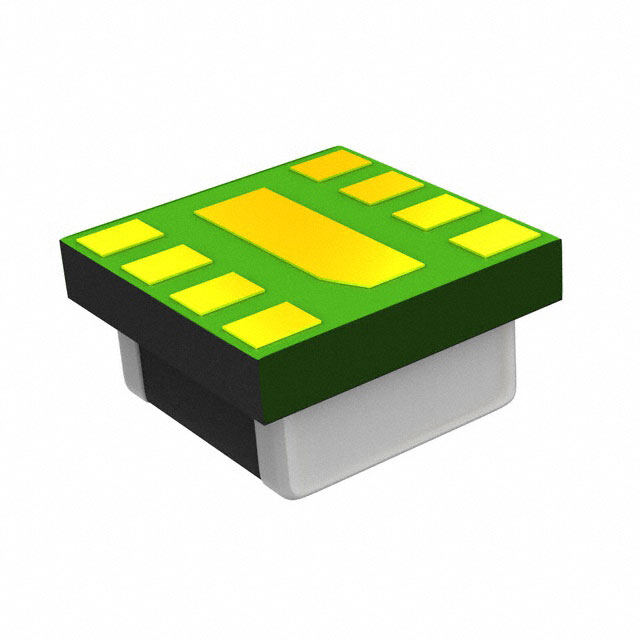

TPS82084SILT
RoHS
RoHS compliant
RoHS compliantPackage 8-LDFN Exposed Pad, Module
Category Power Supplies - Board Mount / DC DC Converters
Description
IC REG BUCK ADJ 2A SYNC 8USIL
PDF
/
Buying Options
Total Price: USD $1.77
Unit Price: USD $1.7705
≥1 USD $1.7705
≥10 USD $1.67028
≥100 USD $1.57574
≥500 USD $1.48654
≥1000 USD $1.4024
Inventory: 2060
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 1.33mm
Technical
Switching Frequency 2.4MHz
Max Duty Cycle 100 %
Switcher Configuration BUCK
Min Output Voltage 800mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Max Output Voltage 6V
Quiescent Current 17μA
Output Current 2A
Output Configuration Positive
Min Supply Voltage 2.5V
Max Supply Voltage 6V
Input Voltage-Nom 3.6V
Operating Supply Voltage 6V
Voltage - Output 1 0.8V~6V
Max Output Current 2A
Output Type Adjustable
Output Voltage 6V
Efficiency 95 %
Number of Outputs 1
Base Part Number TPS82084
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Feature Adjustable Output
Size / Dimension 0.12Lx0.11W x 0.05 H 3.0mmx2.8mmx1.3mm
Series MicroSip?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 8
Package / Case 8-LDFN Exposed Pad, Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 12 Weeks
