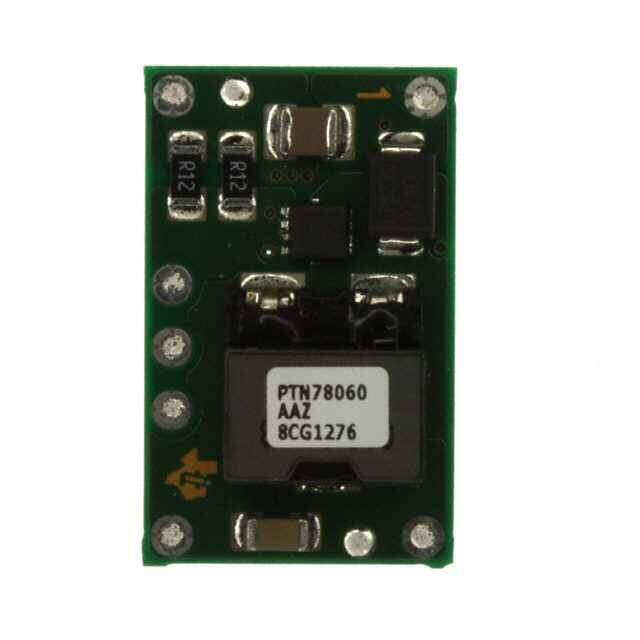

PTN78060AAZ
RoHS
RoHS compliant
RoHS compliantPackage 7-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER -15 TO -3V
PDF
/
Buying Options
Total Price: USD $24.43
Unit Price: USD $24.4288
≥1 USD $24.4288
≥10 USD $24.24048
≥100 USD $24.05128
≥500 USD $23.675907
≥1000 USD $22.548407
≥3000 USD $20.669405
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Plating Copper, Silver, Tin
Mounting Type Surface Mount
Package / Case 7-SMD Module
Surface Mount YES
Number of Pins 7
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTN78060A (15W)
Size / Dimension 1.00Lx0.62W x 0.38 H 25.4mmx15.7mmx9.7mm
JESD-609 Code e1
Feature OCP, OTP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
HTS Code 8504.40.95.80
Power Rating 15W
Max Power Dissipation 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 15.75mm
Frequency 550kHz
Base Part Number PTN78060
Pin Count 7
Number of Outputs 1
Efficiency 88%
Output Voltage -3.3V
Max Output Current 3A
Voltage - Output 1 -15V~-3V
Input Voltage-Nom 20V
Output Current 3A
Output Power 15W
Max Output Voltage -3V
Topology Boost
Control Technique PULSE WIDTH MODULATION
Current - Output 1 3A
Min Output Voltage -15V
Max Output Power 15W
Isolation Non-Isolated
Max Input Voltage (DC) 28.7V
Min Input Voltage (DC) 9V
Dimensions
Height 9mm
Thickness 8.75mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
