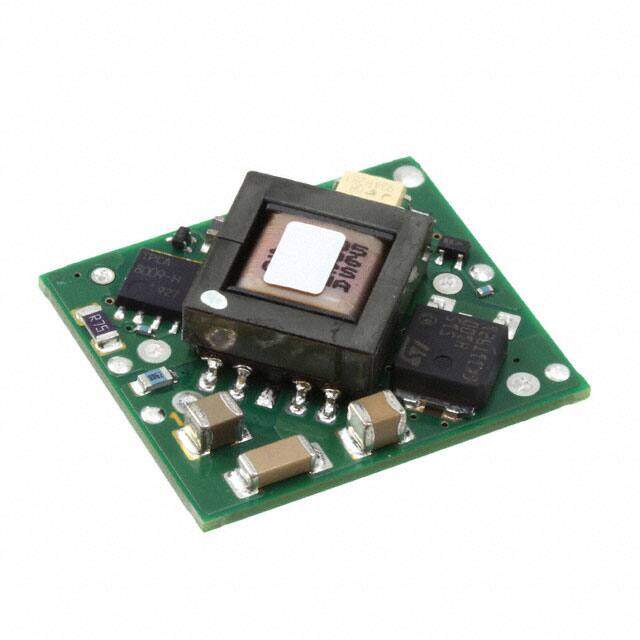

PTMA403033N1AZ image
Favorite
PTMA403033N1AZ image
Favorite

PTMA403033N1AZ

Texas Instruments
RoHS
RoHS RoHS compliant
Package 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 48VIN 1-OUT 3.3V 3A 10W 5-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $32.58
Unit Price: USD $32.5755
≥1 USD $32.5755
≥10 USD $26.7292
≥100 USD $25.8932
≥500 USD $25.05815
≥1000 USD $24.2231
Inventory: 6904
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height 9.144mm

Technical

Isolation Isolated
Min Output Voltage 3V
Current - Output 1 3A
Max Output Voltage 3.6V
Output Power 10W
Output Current 3A
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 3A
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 82%
Number of Outputs 1
Pin Count 5
Base Part Number PTMA403033
Frequency 300kHz
Depth 24.38mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Power Rating 10W
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Feature OCP, OVP, UVLO
JESD-609 Code e1
Size / Dimension 1.10Lx0.96W x 0.36 H 27.9mmx24.4mmx9.1mm
Series PTMA40xx (10W)
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 6.5g
Number of Pins 5
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount
