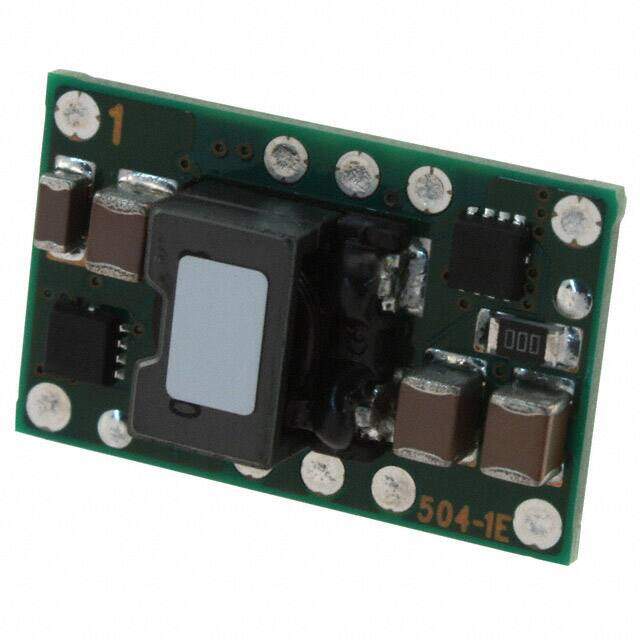

PTH12060YAS
RoHS
/
Package 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 0.55-1.8V 18W
PDF
/
Buying Options
Total Price: USD $86.41
Unit Price: USD $86.4139
≥1 USD $86.4139
≥10 USD $83.6266
≥100 USD $80.8393
≥500 USD $72.47645
Inventory: 2308
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount NO
Number of Pins 10
Weight 3.7g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH12060
Size / Dimension 0.99Lx0.62W x 0.38 H 25.3mmx15.8mmx9.6mm
Feature Remote On/Off, OCP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION
Max Power Dissipation 18W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 15.27mm
Base Part Number TH12060
Pin Count 10
Number of Outputs 1
Efficiency 83%
Voltage - Input (Max) 13.2V
Output Voltage 1.8V
Max Output Current 10A
Voltage - Output 1 0.55V~1.8V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 10A
Quiescent Current 10mA
Output Power 18W
Max Output Voltage 1.8V
Current - Output 1 10A
Min Output Voltage 550mV
Isolation Non-Isolated
Dimensions
Height 9.652mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
