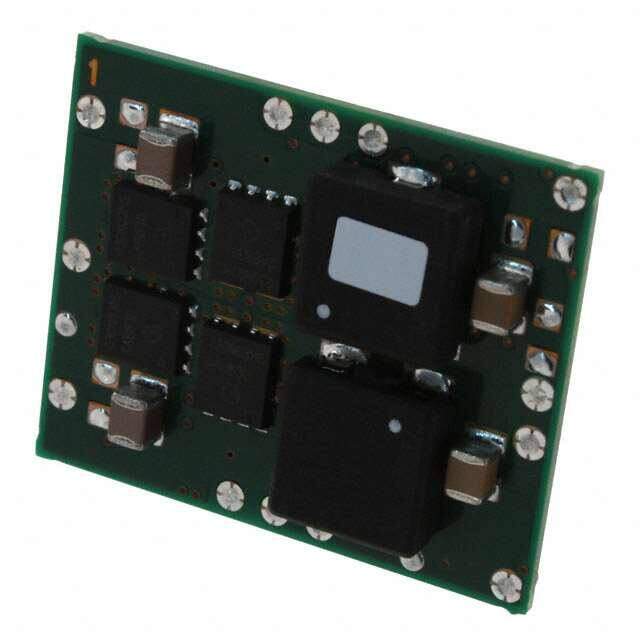

PTH12030WAST
RoHS
/
Package 13-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 12VIN 26A ADJ 13SMD
PDF
/
Buying Options
Total Price: USD $31.83
Unit Price: USD $31.8326
≥1 USD $31.8326
≥10 USD $26.1193
≥100 USD $25.30325
≥500 USD $24.4872
≥1000 USD $23.6702
Inventory: 4004
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Length 34.8mm
Height 9.652mm
Technical
Isolation Non-Isolated
Min Output Voltage 1.2V
Current - Output 1 26A
Max Output Voltage 5.5V
Output Current 26A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 10.2V
Voltage - Output 1 1.2V~5.5V
Max Output Current 26A
Output Voltage 5.5V
Voltage - Input (Max) 13.8V
Efficiency 94.5%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 13
Base Part Number TH12030
Depth 28.45mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position QUAD
Technology HYBRID
Max Power Dissipation 143W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 13
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 1.37Lx1.12W x 0.38 H 34.8mmx28.4mmx9.7mm
Series PTH12030
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 13
Surface Mount NO
Package / Case 13-SMD Module
Mounting Type Surface Mount
