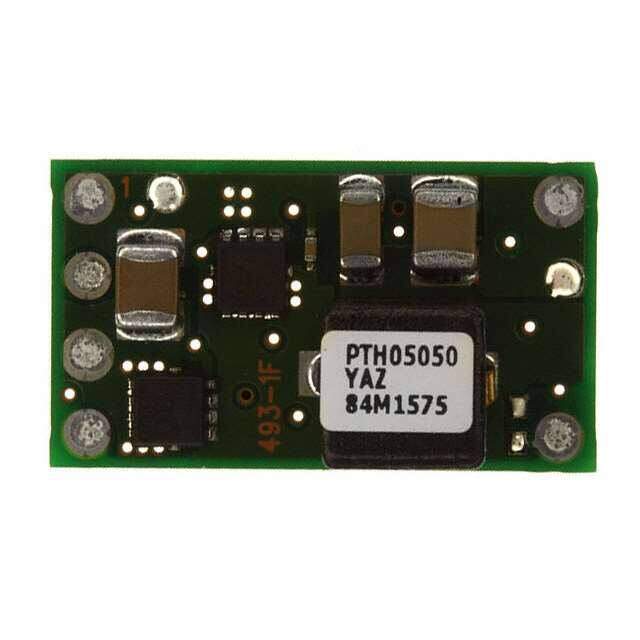

PTH05050YAZ
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP .55-1.8V 6A SMD
PDF
/
Buying Options
Total Price: USD $12.43
Unit Price: USD $12.4256
≥1 USD $12.4256
≥10 USD $12.32704
≥100 USD $12.23288
≥500 USD $12.045088
≥1000 USD $11.668642
≥3000 USD $10.539417
Inventory: 127
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mounting Type Surface Mount
Package / Case 6-SMD Module
Surface Mount YES
Number of Pins 6
Weight 2.9g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH05050Y
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
JESD-609 Code e1
Feature Remote On/Off, OCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 10.8W
Technology HYBRID
Terminal Position DUAL
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 12.57mm
Base Part Number TH05050
Pin Count 6
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 87%
Voltage - Input (Max) 5.5V
Output Voltage 1.8V
Max Output Current 6A
Voltage - Output 1 0.55V~1.8V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 6A
Quiescent Current 10mA
Output Power 50W
Max Output Voltage 1.8V
Protections OUTPUT OVER CURRENT
Control Mode VOLTAGE-MODE
Current - Output 1 6A
Min Output Voltage 550mV
Isolation Non-Isolated
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
