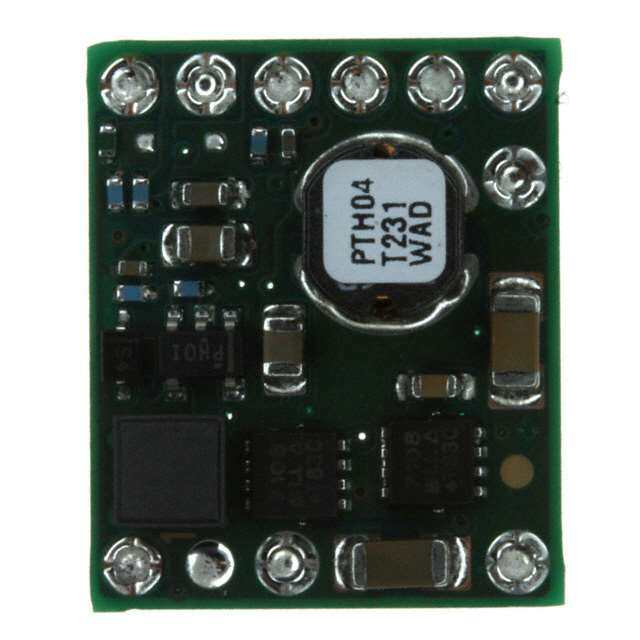

PTH04T231WAD
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 6A 5.5V T/H 10-DIP
PDF
/
Buying Options
Total Price: USD $12.43
Unit Price: USD $12.4256
≥1 USD $12.4256
≥10 USD $12.32704
≥100 USD $12.23288
≥500 USD $12.045
≥1000 USD $11.668554
≥3000 USD $10.539382
Inventory: 229
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 7.5mm
Height 8mm
Technical
Isolation Non-Isolated
Min Output Voltage 690mV
Current - Output 1 6A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 21.6W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 2.2V
Voltage - Output 1 0.69V~3.6V
Max Output Current 6A
Output Type Adjustable
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Efficiency 94%
Approval Agency UL, CSA, VDE
Number of Outputs 1
Pin Count 10
Base Part Number TH04T231
Depth 15.75mm
Number of Functions 1
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 21.6W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.75Lx0.62W x 0.34 H 19.1mmx15.7mmx8.6mm
Series PTH04T231W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 8 Weeks
