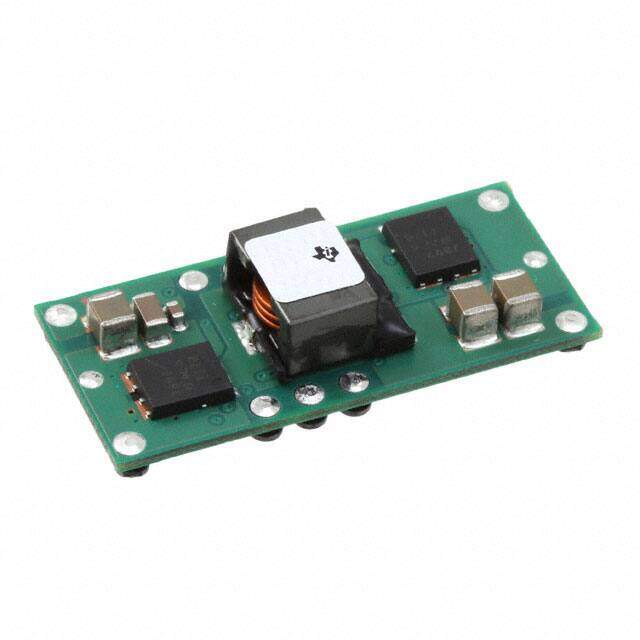

PTH03010YAS
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.55-1.8V
PDF
/
Buying Options
Total Price: USD $26.6
Unit Price: USD $26.60285
≥1 USD $26.60285
≥10 USD $21.82815
≥100 USD $21.14605
≥500 USD $20.46395
≥1000 USD $19.78185
Inventory: 1475
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 34.8mm
Height 9.652mm
Technical
Isolation Non-Isolated
Min Output Voltage 550mV
Current - Output 1 15A
Max Output Voltage 1.8V
Control Features Enable, Active High
Output Power 27W
Quiescent Current 10mA
Output Current 15A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.55V~1.8V
Max Output Current 15A
Output Voltage 1.8V
Voltage - Input (Max) 3.65V
Efficiency 88%
Approval Agency UL, VDE
Number of Outputs 1
JESD-30 Code R-XXMA-X20
Pin Count 20
Base Part Number TH03010
Depth 15.75mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 27W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Remote On/Off, OCP, UVLO
Size / Dimension 1.37Lx0.62W x 0.38 H 34.8mmx15.8mmx9.6mm
Series PTH03010Y
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 3.7g
Number of Pins 10
Surface Mount NO
Package / Case 10-SMD Module
Mounting Type Surface Mount
