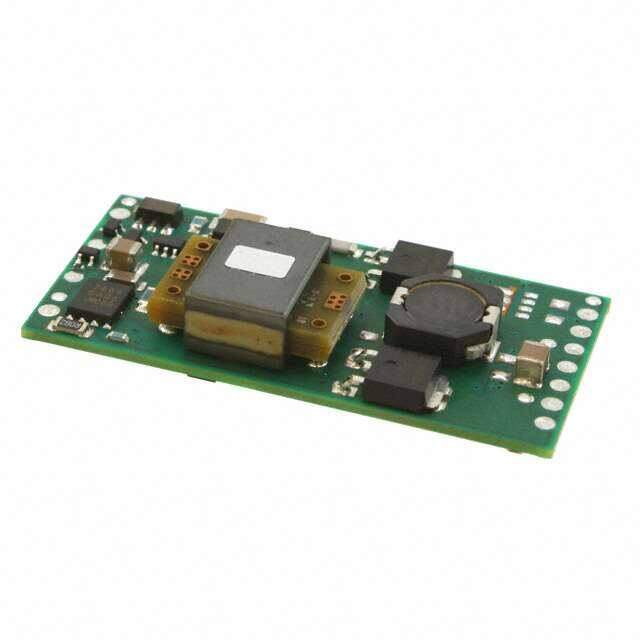

PTB48560CAS
RoHS
RoHS compliant
RoHS compliantPackage 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 9-13.2V 30W
PDF
/
Inventory: 6001
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 9.73mm
Height 9.98mm
Technical
Isolation Isolated
Min Output Voltage 9V
Current - Output 1 2.5A
Max Output Voltage 13.2V
Output Power 30W
Output Current 8A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 9V~13.2V
Max Output Current 2.5A
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 88%
Number of Outputs 1
Pin Count 11
Base Part Number PTB48560
Depth 26.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 235; 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 30W
Power Rating 30W
Applications ITE (Commercial)
Terminal Finish Tin/Lead (Sn/Pb)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e0
Size / Dimension 2.04Lx1.04W x 0.40 H 51.8mmx26.5mmx10.3mm
Series PTB48560 (30W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 11
Surface Mount NO
Package / Case 11-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 4 days ago)
Alternative Model
