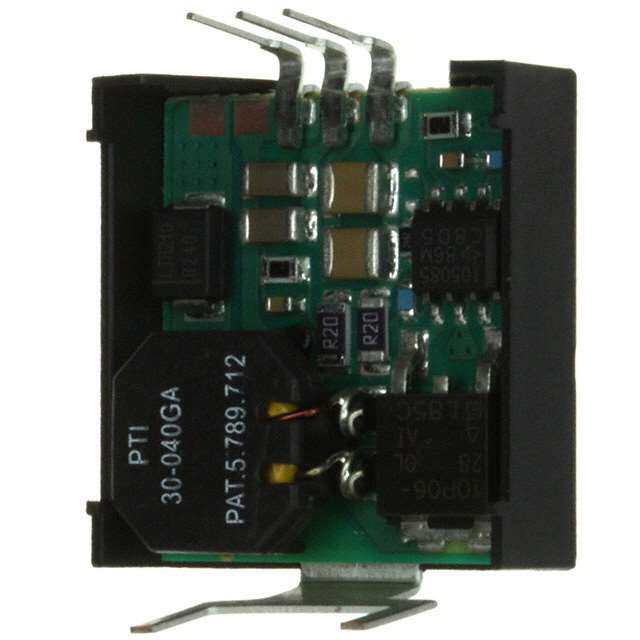

PT78NR215H
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER -15V .8A
PDF
/
Inventory: 2389
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Surface Mount NO
Number of Pins 3
Technical
Operating Temperature 0°C~85°C
Packaging Tray
Series PT78NR200 (12W)
Size / Dimension 0.93Lx1.01W x 0.38 H 23.6mmx25.7mmx9.7mm
Feature OTP, SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 12W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 23.62mm
Base Part Number 78NR215
Pin Count 3
Number of Outputs 1
Efficiency 78%
Voltage - Input (Max) 15V
Output Voltage -15V
Max Output Current 800mA
Voltage - Input (Min) 9V
Input Voltage-Nom 10V
Output Current 800mA
Output Power 12W
Max Output Voltage -15V
Topology Boost
Control Mode VOLTAGE-MODE
Current - Output 1 800mA
Min Output Voltage -15V
Switcher Configuration SINGLE
Switching Frequency-Max 700kHz
Isolation Non-Isolated
Dimensions
Height 9.652mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
