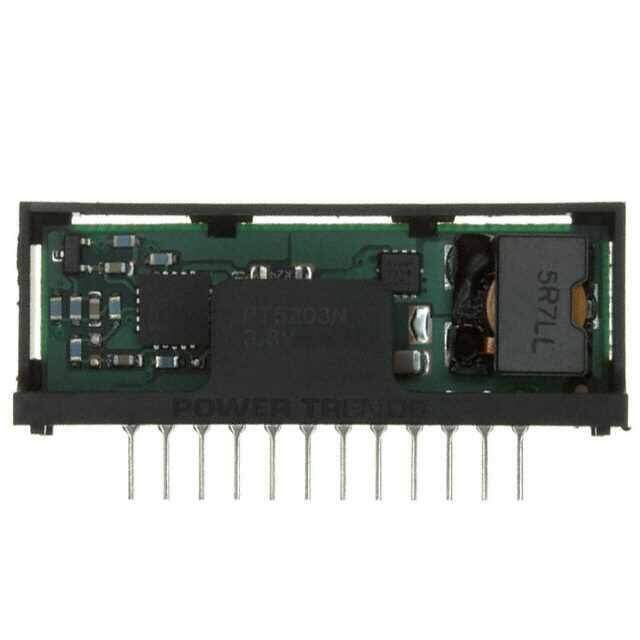

PT6203N
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 3.3V 2A ADJ ON/OFF VRT 12SIP
PDF
/
Buying Options
Total Price: USD $58.41
Unit Price: USD $58.410921
≥1 USD $58.410921
≥204 USD $23.306601
≥504 USD $22.528051
≥996 USD $22.143371
Inventory: 8992
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 9.65mm
Length 43.15mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 600kHz
Switcher Configuration SINGLE
Control Mode VOLTAGE-MODE
Output Current 2A
Input Voltage-Nom 8V
Voltage - Input (Min) 7V
Max Output Current 2A
Output Voltage 3.3V
Voltage - Input (Max) 26V
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 12
Base Part Number PT6203
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 9.4mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 6.6W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT6200
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 8.5g
Number of Pins 12
Package / Case 12-SIP Module
Mounting Type Through Hole
Mount Through Hole
