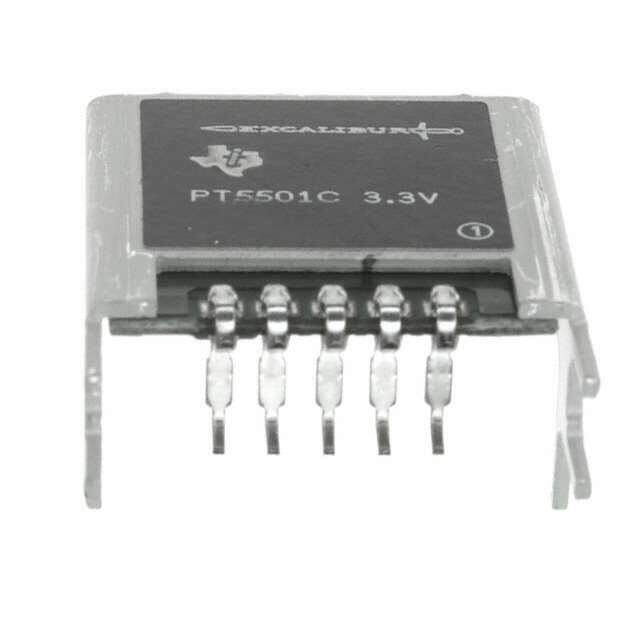

PT5501C
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG ADJ 3A 3.3VOUT 4.5-5.5VIN
PDF
/
Inventory: 5093
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 5-SMD Module
Number of Pins 5
Weight 6.5g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series Excalibur? PT5500
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 9.9W
Technology HYBRID
Terminal Position SINGLE
Terminal Form GULL WING
Number of Functions 1
Depth 22.86mm
Base Part Number PT5501
Pin Count 5
Number of Outputs 1
Efficiency 90%
Voltage - Input (Max) 5.5V
Output Voltage 3.3V
Max Output Current 3A
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Output Current 3A
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Isolation Non-Isolated
Dimensions
Length 28.19mm
Width 22.9mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
