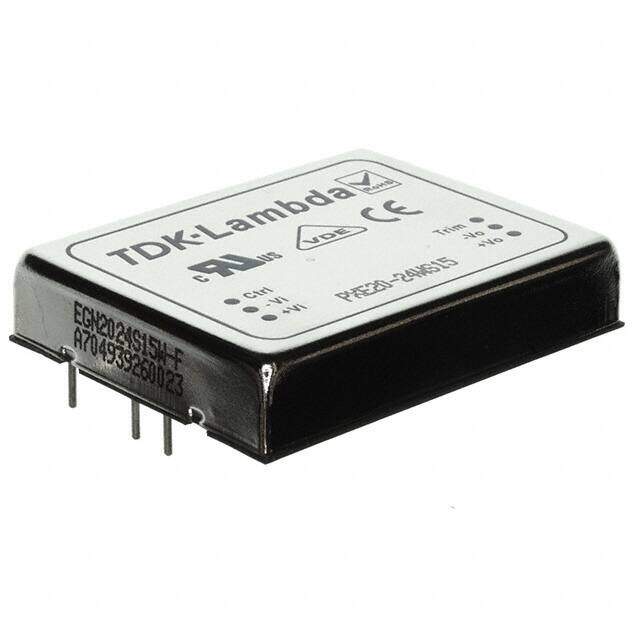

PXE2024WS15 image
Favorite
PXE2024WS15 image
Favorite
RoHS
RoHS RoHS compliant
Package 8-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC-DC CONVERTERS 15V 20W 1.33A
PDF
/
Buying Options
Total Price: USD $59
Unit Price: USD $59.004842
≥1 USD $59.004842
≥10 USD $55.664947
≥100 USD $52.514102
≥500 USD $49.541608
≥1000 USD $46.737366
Inventory: 1562
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 50.8mm
Height 10.16mm

Technical

Current - Output 1 1.33A
Output Power 20W
Output Current 1.33A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Max Output Current 1.33A
Output Voltage 15V
Voltage - Input (Max) 36V
Voltage - Isolation 1.6kV
Efficiency 81%
Approval Agency CE, CSA, EN, UL
Number of Outputs 1
JESD-30 Code R-XDMA-P7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 20W
Power Rating 20W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx8.6mm
Series PXE (20W)
Published 2005
Packaging Bulk
Operating Temperature -40°C~100°C

Physical

Number of Pins 6
Package / Case 8-DIP Module, 6 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
