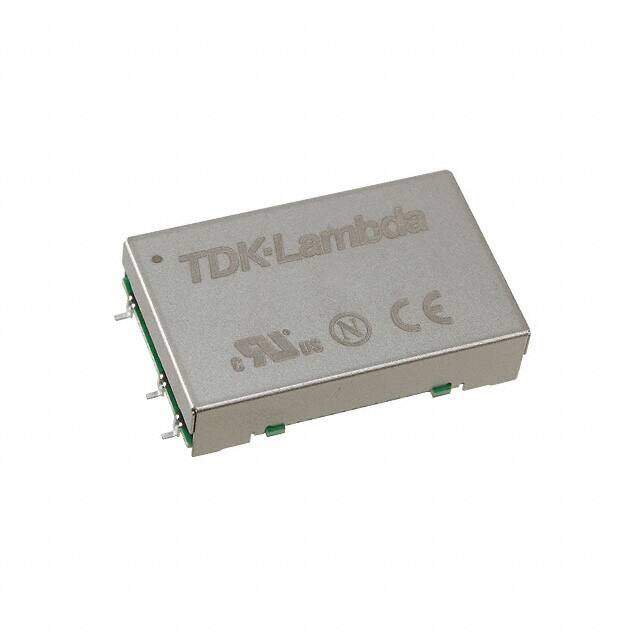

CC15-4805SRP-E
RoHS
RoHS compliant
RoHS compliantPackage 20-SMD Module, 17 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 15W 5V 3A
PDF
/
Inventory: 7439
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case 20-SMD Module, 17 Leads
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2008
Series CC-P-E (15W)
Size / Dimension 1.51Lx1.17W x 0.27 H 38.4mmx29.6mmx6.8mm
JESD-609 Code e3
Feature Remote On/Off, OCP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 17
ECCN Code EAR99
Type Isolated Module
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Applications ITE (Commercial)
Power (Watts) 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Efficiency 89%
Voltage - Isolation 1kV
Voltage - Input (Max) 76V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 3A
Control Features Enable, Active Low
Dimensions
Height Seated (Max) 6.8mm
Length 38.4mm
Width 29.6mm
Compliance
RoHS Status RoHS Compliant
