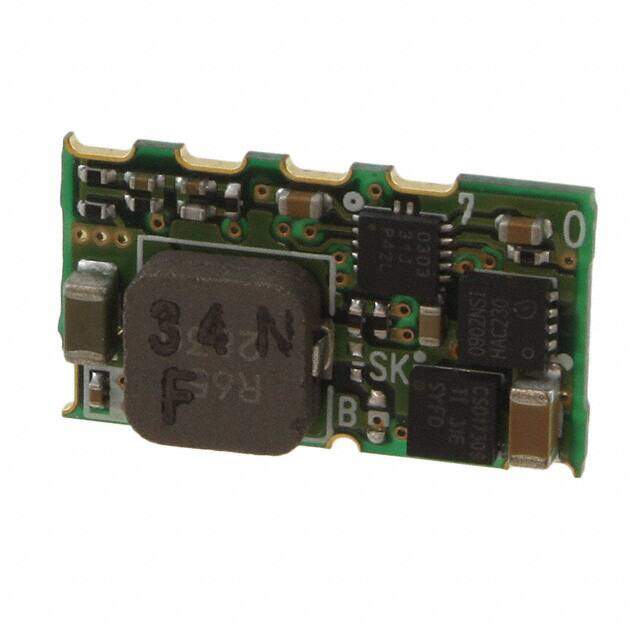

BR200
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.75-1.65V 17W
PDF
/
Inventory: 6496
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-SMD Module
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2013
Size / Dimension 0.80Lx0.45W x 0.17 H 20.3mmx11.4mmx4.2mm
Feature Remote On/Off, OCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Non-Isolated PoL Module
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 17W
Max Power Dissipation 17W
Number of Outputs 1
Efficiency 89.9%
Voltage - Input (Max) 14V
Max Output Current 10A
Voltage - Output 1 0.75V~1.65V
Voltage - Input (Min) 7V
Current - Output (Max) 10A
Control Features Enable, Active High
Min Input Voltage 7V
Max Input Voltage 14V
Dimensions
Height 4.318mm
Length 20.32mm
Width 11.43mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
