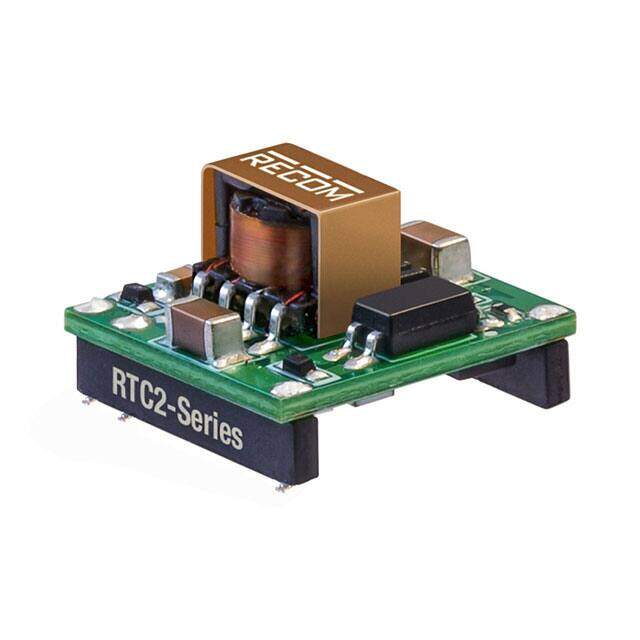

RTC2-2405SRW
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 2W
PDF
/
Buying Options
Total Price: USD $10.08
Unit Price: USD $10.076
≥1 USD $10.076
≥10 USD $9.99856
≥100 USD $9.922
≥500 USD $9.76976
≥1000 USD $9.4644
≥3000 USD $8.6416
Inventory: 72
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 9.6mm
Technical
Total Power Output-Max 2W
Max Output Voltage 24V
Control Features Enable, Active Low
Output Power 2W
Output Current 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Output Voltage 24V
Voltage - Input (Max) 36V
Voltage - Isolation 3kV
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-PXMA-X5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 0.59Lx0.56W x 0.38 H 14.9mmx14.2mmx9.6mm
Series RTC2 (2W)
Packaging Tray
Operating Temperature -40°C~100°C With Derating
Physical
Weight 2g
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
