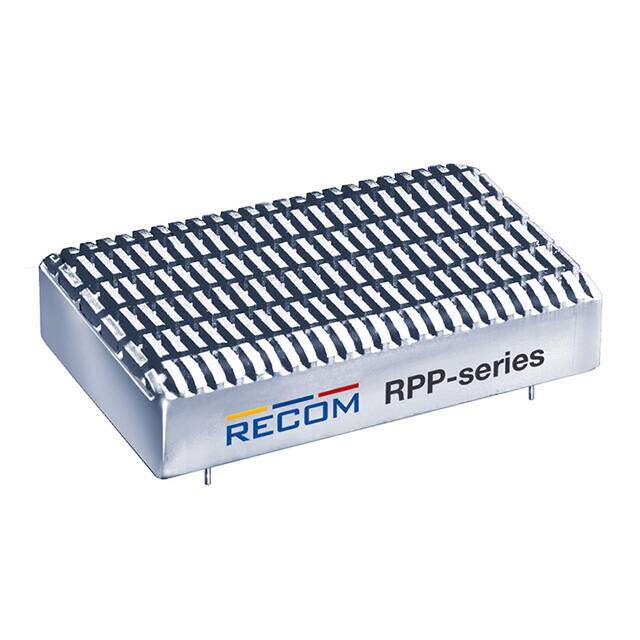

RPP20-2412SW
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 20W SNGL 12V OUT
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Number of Pins 6
Weight 27g
Technical
Operating Temperature -45°C~95°C
Packaging Tube
Series POWERLINE+ RPP20-W (20W)
Size / Dimension 1.60Lx1.00W x 0.46 H 40.6mmx25.4mmx11.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature SEATED HT-CALCULATED
Subcategory Other Analog ICs
Power Rating 20W
Max Power Dissipation 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 41mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 6
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 88.1%
Voltage - Isolation 1.6kV
Output Voltage 12V
Max Output Current 1.67A
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 1.67A
Output Current 1.67A
Output Power 20W
Control Features Enable, Active High
Max Output Voltage 13.2V
Current - Output 1 1.666A
Nominal Input Voltage 24V
Max Output Power 20W
Isolation Isolated
Nominal Output Voltage 12V
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 9V
Dimensions
Height 12.7mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
