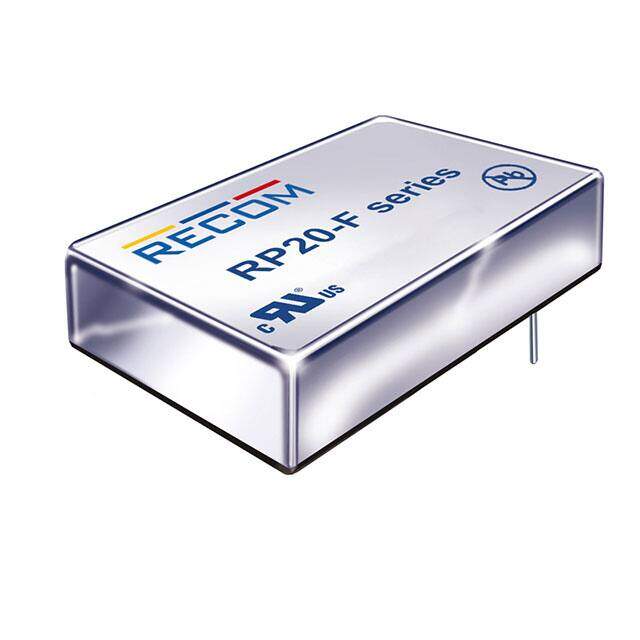

RP20-4815SF
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 20W 36-75VIN 15VOUT
PDF
/
Buying Options
Total Price: USD $62.21
Unit Price: USD $62.2072
≥1 USD $62.2072
≥10 USD $59.84
≥100 USD $59.36832
≥500 USD $57.48336
≥1000 USD $54.656272
≥3000 USD $50.88688
Inventory: 44
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 25.4mm
Height 10.2mm
Technical
Isolation Isolated
Nominal Input Voltage 48V
Max Output Voltage 16.5V
Control Features Enable, Active High
Output Power 20W
Output Current 1.33A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 1.33A
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 87%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 50.8mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 20W
Subcategory Other Analog ICs
Additional Feature SEATED HGT-NOM
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OCP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series POWERLINE RP20-F (20W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 27g
Number of Pins 6
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 12 Weeks
