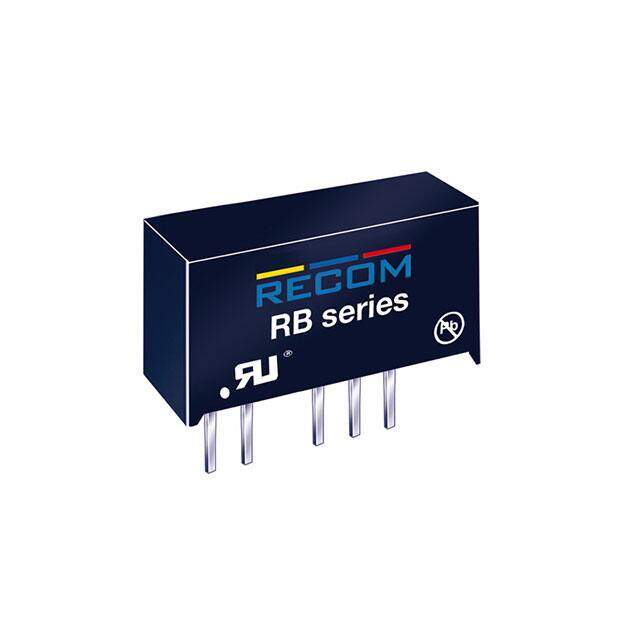

RBM-0515S/P
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 5VIN 15VOUT
PDF
/
Buying Options
Total Price: USD $7.27
Unit Price: USD $7.267788
≥1 USD $7.267788
≥10 USD $6.856405
≥100 USD $6.468311
≥500 USD $6.10218
≥1000 USD $5.756771
Inventory: 1079
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Weight 1.3g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series ECONOLINE RBM (1W)
Size / Dimension 0.65Lx0.24W x 0.30 H 16.5mmx6.0mmx7.7mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Type Isolated Module
Applications ITE (Commercial), Medical
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-P5
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 84%
Voltage - Isolation 3kV
Voltage - Input (Max) 5.5V
Output Voltage 15V
Max Output Current 66mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 66mA
Output Power 1W
Max Output Voltage 15V
Total Power Output-Max 1W
Nominal Input Voltage 5V
Dimensions
Height 7.7mm
Width 6mm
Compliance
RoHS Status ROHS3 Compliant
