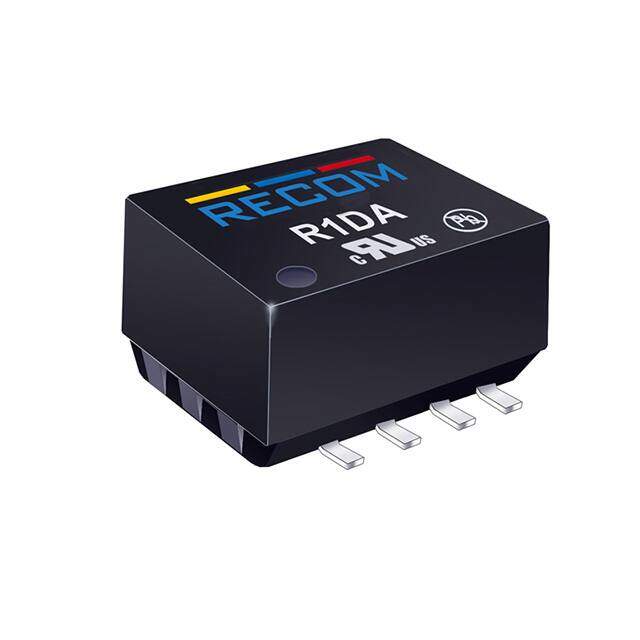

R1DA-240909
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
1W DC/DC-CONVERTER ECONOLINE
PDF
/
Inventory: 1915
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7mm
Technical
Total Power Output-Max 1W
Max Output Voltage 9V
Output Power 1W
Current - Output (Max) 56mA 56mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Max Output Current 56mA
Output Voltage 9V
Voltage - Input (Max) 26.4V
Voltage - Isolation 1kV
Efficiency 78%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-XDMA-G7
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Additional Feature IT ASLO HAS 9V OUTPUT
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.60Lx0.42W x 0.28 H 15.2mmx10.7mmx7.0mm
Series ECONOLINE R1DA (1W)
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 1.2g
Package / Case 10-SMD Module, 7 Leads
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
