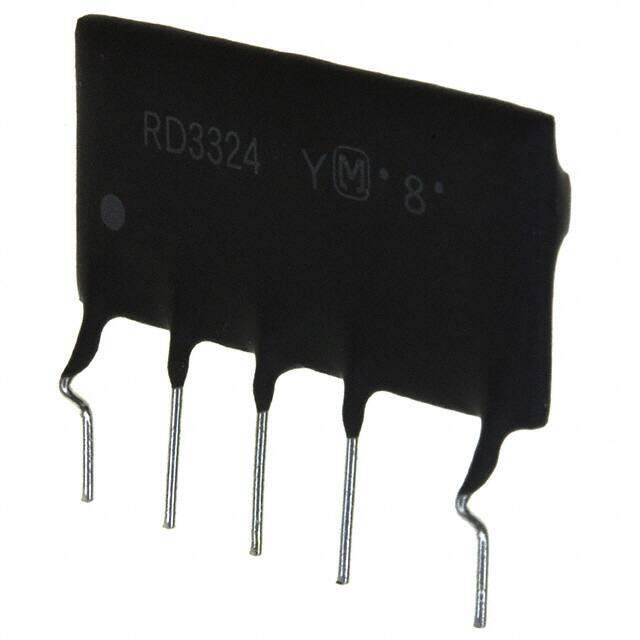

EHD-RD3324Y
RoHS
/
Package 10-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 12V OUTPUT 200MA
PDF
/
Inventory: 9788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 26.5mm
Height 17.78mm
Technical
Trim/Adjustable Output NO
Input Voltage-Nom 141V
Voltage - Input (Min) 113V
Voltage - Output 1 12V
Max Output Current 200mA
Output Voltage 13V
Voltage - Input (Max) 190V
Efficiency 75%
Number of Outputs 1
JESD-30 Code R-XSMA-T5
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2.4W
Power (Watts) 2W
Applications ITE (Commercial)
Terminal Finish TIN/TIN BISMUTH
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3/e6
Size / Dimension 1.11Lx0.24W x 0.70 H 28.2mmx6.0mmx17.9mm
Series EHD-RD
Published 2002
Packaging Tray
Operating Temperature -20°C~80°C
Physical
Package / Case 10-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
