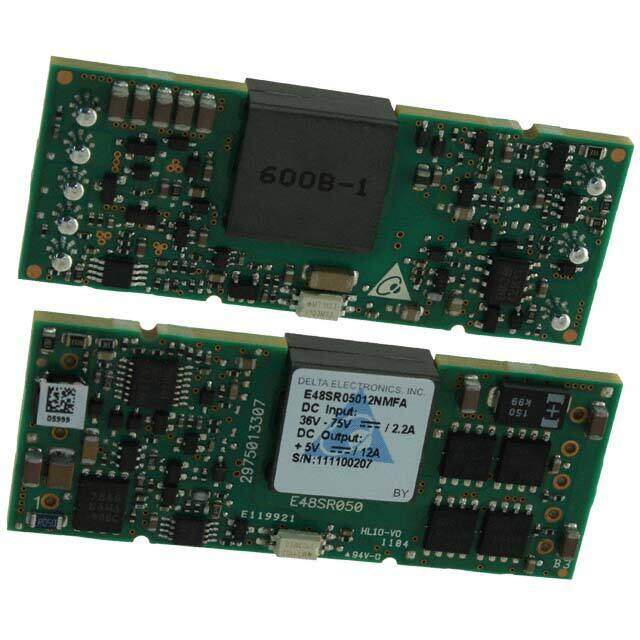

E48SR3R320NRFA
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 3.3V 20A 66W 8-Pin 1/8-Brick T/R
PDF
/
Buying Options
Total Price: USD $42.57
Unit Price: USD $42.5656
≥1 USD $42.5656
≥10 USD $42.2312
≥100 USD $41.897636
Inventory: 64
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Number of Pins 8
Technical
Operating Temperature -40°C~115°C
Packaging Tray
Published 2009
Series Delphi E48SR (66W)
Size / Dimension 2.30Lx0.90W x 0.33 H 58.4mmx22.9mmx8.4mm
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Max Operating Temperature 115°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 66W
Max Power Dissipation 66W
Depth 58.4mm
Number of Outputs 1
Efficiency 90.5%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 3.3V
Max Output Current 20A
Voltage - Output 1 3.3V
Voltage - Input (Min) 36V
Current - Output (Max) 20A
Output Current 20A
Output Power 66W
Control Features Enable, Active Low
Min Input Voltage 36V
Max Input Voltage 75V
Current - Output 1 20A
Isolation Isolated
Max Input Voltage (DC) 75V
Min Input Voltage (DC) 36V
Dimensions
Height 8.382mm
Length 58.42mm
Width 22.86mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
