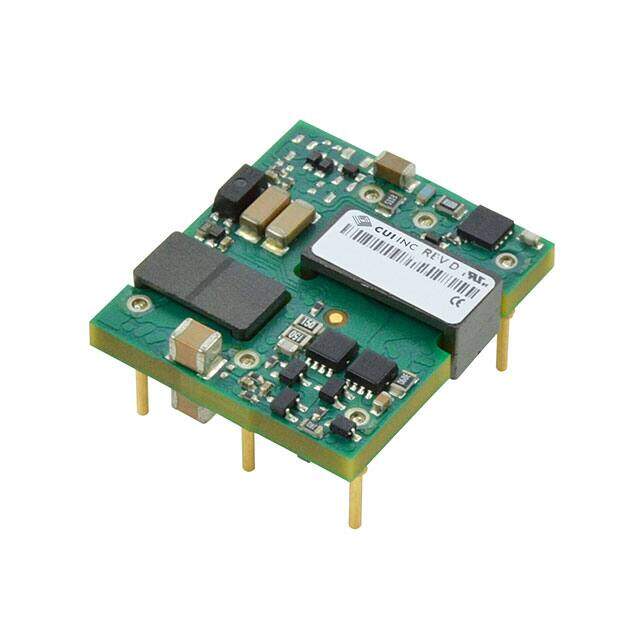

PRD25-D48-S3-N-D image
Favorite
PRD25-D48-S3-N-D image
Favorite

PRD25-D48-S3-N-D

CUI Inc.
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 3.3V 25W
PDF
/
Inventory: 2399
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 24.4mm
Length 27.9mm
Height 8.382mm

Technical

Control Features Enable, Active Low
Current - Output (Max) 7.5A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 3.3V
Max Output Current 750mA
Output Voltage 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 89.5%
Number of Outputs 1
JESD-30 Code R-XDMA-P6
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 25W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 1.10Lx0.96W x 0.33 H 27.9mmx24.4mmx8.4mm
Series PRD25 (25W)
Published 2016
Packaging Box
Operating Temperature -40°C~85°C

Physical

Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 19 Weeks
