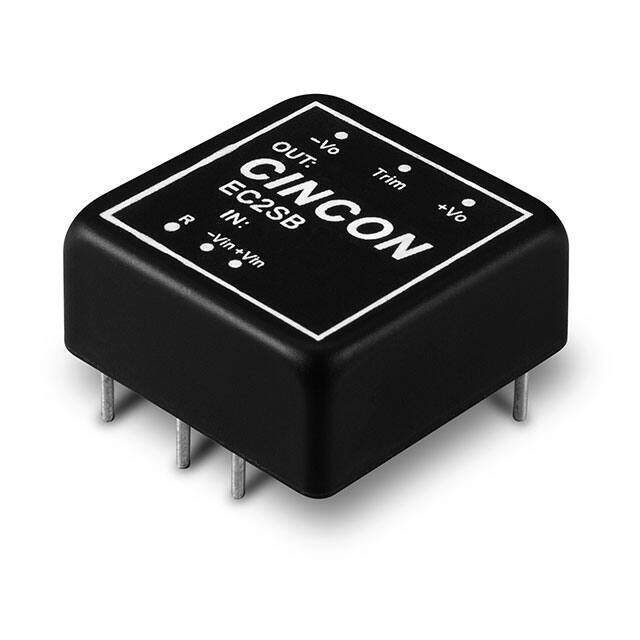

EC2SB-48D05
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 10W +/-5V +/-1000mA 36-75VDCin
PDF
/
Inventory: 3695
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -40°C~85°C With Derating
Series EC2SB (10W)
Size / Dimension 1.00Lx1.00W x 0.40 H 25.4mmx25.4mmx10.2mm
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Number of Outputs 2
Efficiency 85%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Input (Min) 36V
Current - Output (Max) 1A 1A
Output Power 10W
Voltage - Output 2 -5V
Current - Output 1 1A
Current - Output 2 -1A
Nominal Input Voltage (DC) 48V
Compliance
RoHS Status ROHS3 Compliant
