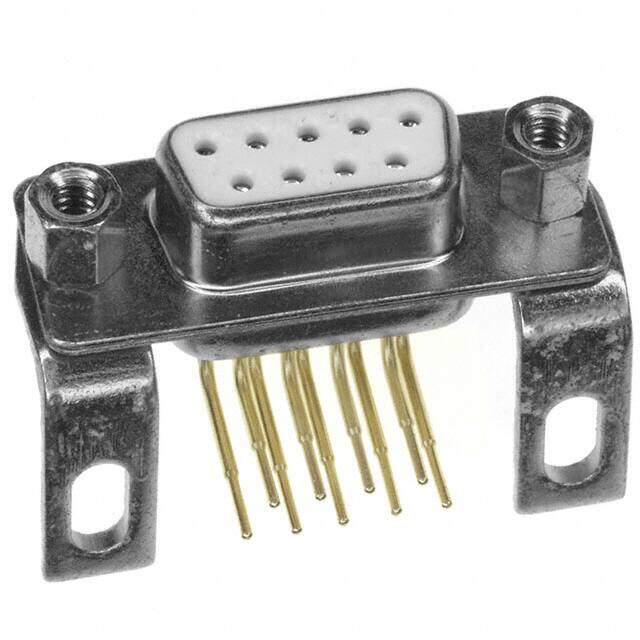

174-E09-211-141
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
174-E Non-RoHS Compliant 2002 Contains Lead Receptacle, Female Sockets Connector UL94V-0 100C 5A 0.370 (9.40mm)
PDF
/
Inventory: 6096
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness Flash
Length 30.8mm
Height 12.6mm
Technical
Backset Spacing 0.370 (9.40mm)
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Connector Style D-Sub
Flange Feature Mating Side, Female Screwlock (4-40)
Housing Color White
Contact Finish Gold
Current Rating 5A
Current Rating (Amps) 5A
Contact Type Signal
Gender Female
Number of Rows 2
Color White
Min Operating Temperature -50°C
Max Operating Temperature 100°C
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Mounting Brackets
Series 174-E
Published 2002
Operating Temperature -50°C~100°C
Physical
Shell Material, Finish Steel, Yellow Chromate Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
