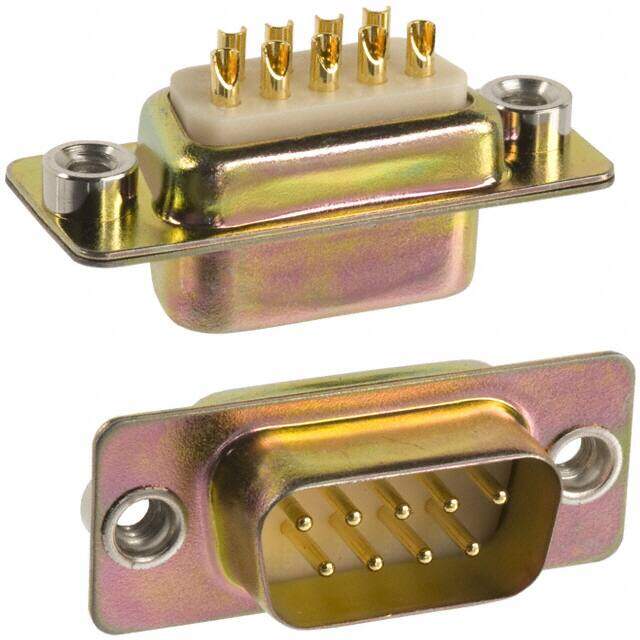

172-E09-101R011

NorComp Inc.
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 9POS PNL MNT
PDF
/
Inventory: 2499
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash
Width 12.6mm
Length 30.8mm
Height 10.2mm

Technical

Shell Size, Connector Layout 1 DE E
Contact Form Machined
Connector Style D-Sub
Flange Feature Cable Side (4-40)
Wire Gauge 20-26 AWG
Housing Color White
Contact Finish Gold
Current Rating 5A
Current Rating (Amps) 5A
Contact Type Signal
Number of Rows 2
Color White
Min Operating Temperature -50°C
Max Operating Temperature 100°C
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series 172-E, M Series
Published 2005
Packaging Tray
Operating Temperature -50°C~100°C

Physical

Shell Material, Finish Steel, Yellow Chromate Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Panel Mount
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material Brass
