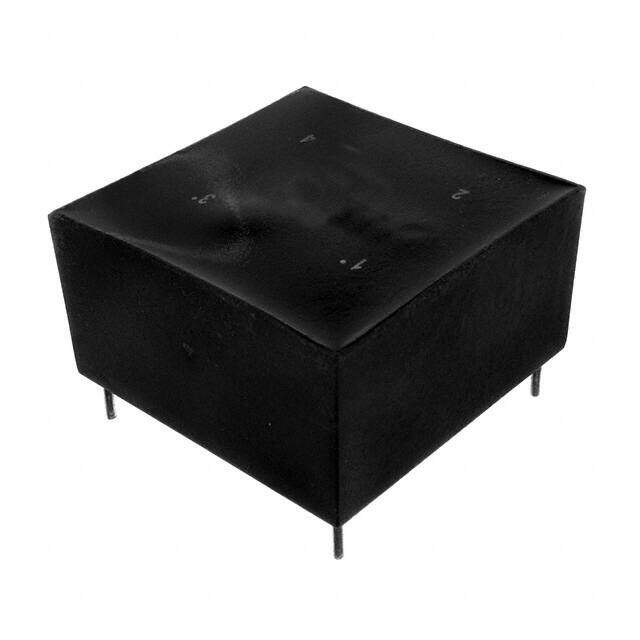

PE-62897
RoHS
/
Package Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 2MH 7.5A 2LN TH
PDF
/
Buying Options
Total Price: USD $33.73
Unit Price: USD $33.731027
≥1 USD $33.731027
≥210 USD $13.459851
≥510 USD $13.009526
≥990 USD $12.787646
Inventory: 1961
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Horizontal, 4 PC Pin
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2014
Size / Dimension 1.500Lx1.500W 38.10mmx38.10mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
HTS Code 8504.50.80.00
Number of Functions 2
Depth 38.1mm
Military Standard Not
Inductance 2 mH
Test Frequency 1kHz
Current 7.5A
Max DC Current 6A
Lead/Base Style Pin
Filter Type Power Line
DC Current 7.5A
Number of Lines 2
DC Resistance (DCR) (Max) 20mOhm
Inductance @ Frequency 2mH @ 1kHz
Dimensions
Height 20.574mm
Length 31.75mm
Width 31.75mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
