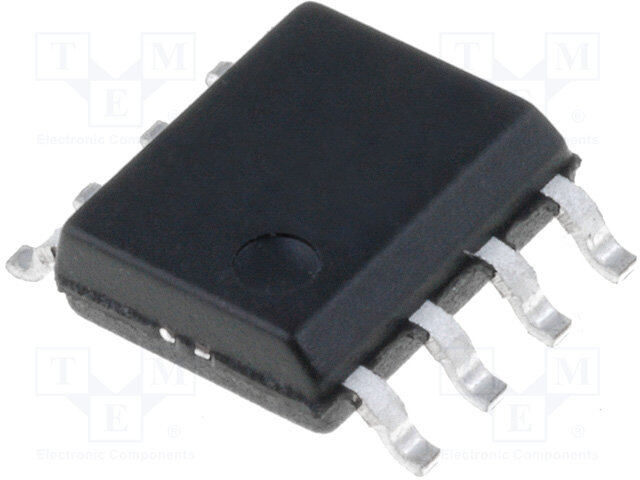

ICS501MLFT
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description
DUAL GULL WING COMMERCIAL CMOS clock generator circuit 1999 0C 4.9mm 160MHz
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 3294
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 8
Technical
Packaging Cut Tape (CT)
Published 1999
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature ALSO OPERATES AT 5V SUPPLY
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 8
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.25V
Power Supplies 3.3/5V
Temperature Grade COMMERCIAL
Supply Voltage-Min (Vsup) 3V
Number of Circuits 1
Frequency (Max) 160MHz
Input Clock
Primary Clock/Crystal Frequency-Nom 50MHz
PLL Yes
Dimensions
Length 4.9mm
Width 3.9mm
Compliance
RoHS Status RoHS Compliant
