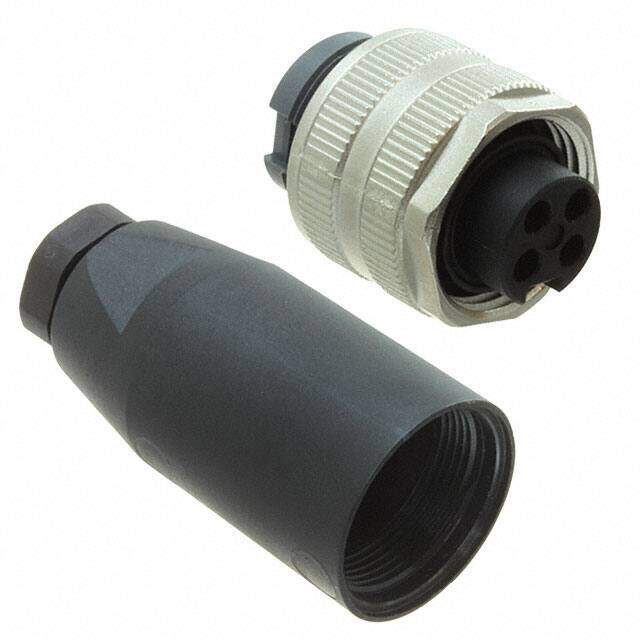

1521342
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Conn Circular SKT 4 POS Screw ST Cable Mount 4 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $31.45
Unit Price: USD $31.4512
≥1 USD $31.4512
≥10 USD $28.9344
≥100 USD $26.732816
≥500 USD $25.474856
≥1000 USD $25.334989
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Plastic
Weight 39.800009g
Insert Material Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Black, Silver
Voltage - Rated 300V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 9A
Shell Finish Nickel
Shell Size - Insert 7/8-4
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
