1507777
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

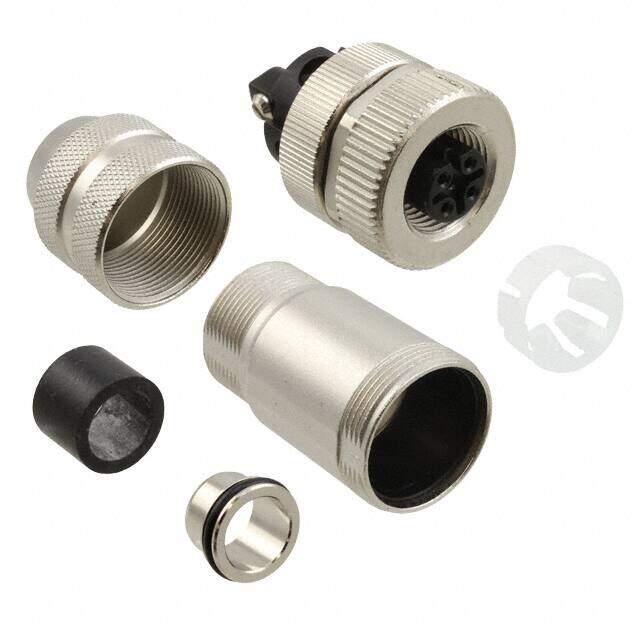

Circular Metric Connectors SACC-M12-FSB-5-CON PG9 SH AU
PDF
/
Buying Options
Total Price: USD $29.52
Unit Price: USD $29.5152
≥1 USD $29.5152
≥10 USD $27.1568
≥100 USD $25.090208
≥500 USD $23.909512
≥1000 USD $23.778269
Inventory: 113
Minimum: 1
-
+
Technical Details
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
Technical
Thread Size M12
Cable Opening 0.256 ~ 0.335 (6.50mm ~ 8.50mm)
Number of Ports 2
Plating Brass
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation B
Total Number of Contacts 5
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Screw
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Weight 47.940007g
Housing Material Zinc
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
