1424669
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

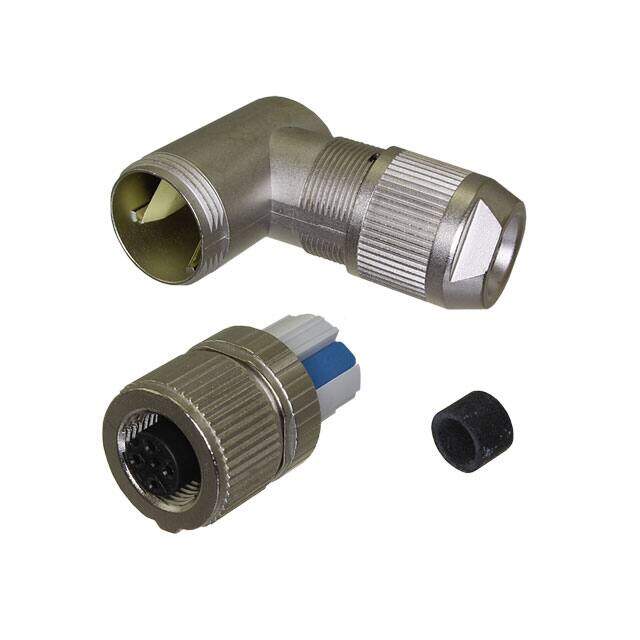

CONN 4POS SKT ANGLED M12 A-CODED
PDF
/
Buying Options
Total Price: USD $410
Unit Price: USD $41
≥10 USD $41
Inventory: 12
Minimum: 10
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation A
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 48VAC 60VDC
Gender Receptacle
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Spring-Cage
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Zinc Die Cast, Nickel
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Contact Material Copper Tin
Supply Chain
Factory Lead Time 4 Weeks
