1404423
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

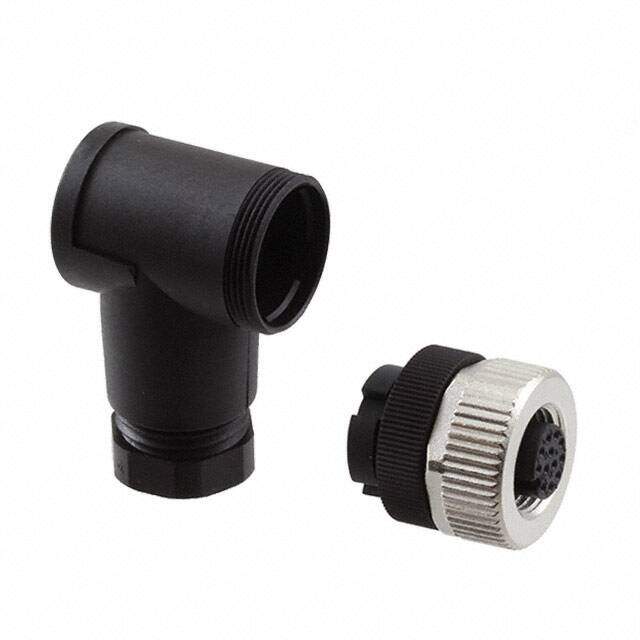

Plug-in connector SACC-M12FR-12SOL-PG 9-M 1404423 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $46.5
Unit Price: USD $46.4992
≥1 USD $46.4992
≥10 USD $42.77856
≥100 USD $39.523792
≥500 USD $37.663736
Inventory: 200
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Contact Gender Female
Shell Size - Insert M12-12
Shell Finish Nickel
Current Rating 1A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Current Rating (Amps) 1.5A
Contact Finish - Mating Gold
Fastening Type Threaded
HTS Code 8536.69.40.20
Voltage - Rated 30VAC/DC
Color Black, Silver
Number of Positions 12
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series SACC
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
