PHG.0B.309.CLLD52
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

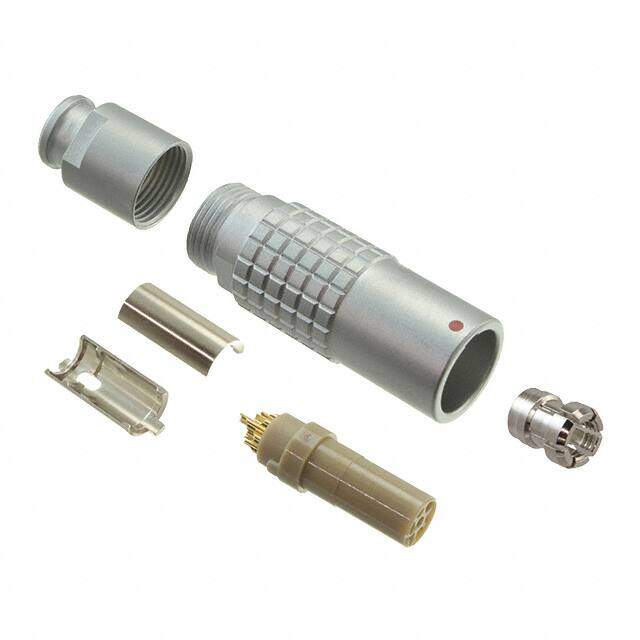

Circular Push Pull Connectors 9P SOLDER SCKT RECPT CABLE COLLET 5.2MM
PDF
/
Buying Options
Total Price: USD $34.72
Unit Price: USD $34.7248
≥1 USD $34.7248
≥10 USD $30.41016
≥100 USD $29.095616
≥500 USD $28.157184
≥1000 USD $27.218576
≥3000 USD $25.716909
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP50
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Length 34.5mm
Diameter 9.5mm
Technical
Cable Opening 0.165 ~ 0.205 (4.20mm ~ 5.20mm)
Contact Style Socket
Contact Gender Female
Shell Size - Insert 309
Shell Finish Chrome
Current Rating 2A
Ingress Protection IP50 - Dust Protected
Shielding Shielded
Orientation G
Contact Finish - Mating Gold
Fastening Type Push-Pull
Color Silver
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series 0B
Packaging Bulk
Operating Temperature -55°C~250°C
Physical
Backshell Material, Plating Brass, Chrome
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
