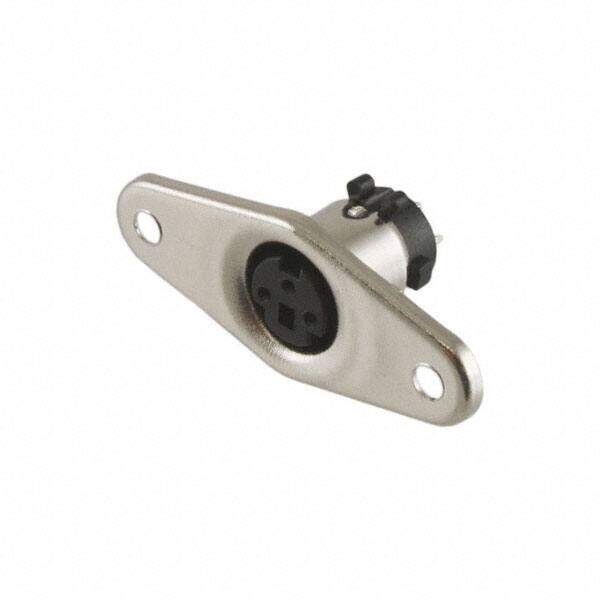

MD-30SN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE MINI DIN 3P SLDR
PDF
/
Buying Options
Total Price: USD $4.45
Unit Price: USD $4.45467
≥1 USD $4.45467
≥200 USD $1.777667
≥500 USD $1.718586
≥1000 USD $1.689702
Inventory: 6379
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Silver
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Insulation Material Nylon
Shell Material Iron
Insert Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -20°C~105°C
Packaging Bulk
Published 2011
Series MD-SN
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 3
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Color Silver
Voltage - Rated 100VAC 12VDC
Fastening Type Push-Pull
Contact Finish - Mating Silver
Current Rating (Amps) 1A 2A
Orientation Keyed
Shielding Shielded
Current Rating 2A
Shell Finish Nickel
Shell Size - Insert Mini DIN
Number of Contacts 3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
