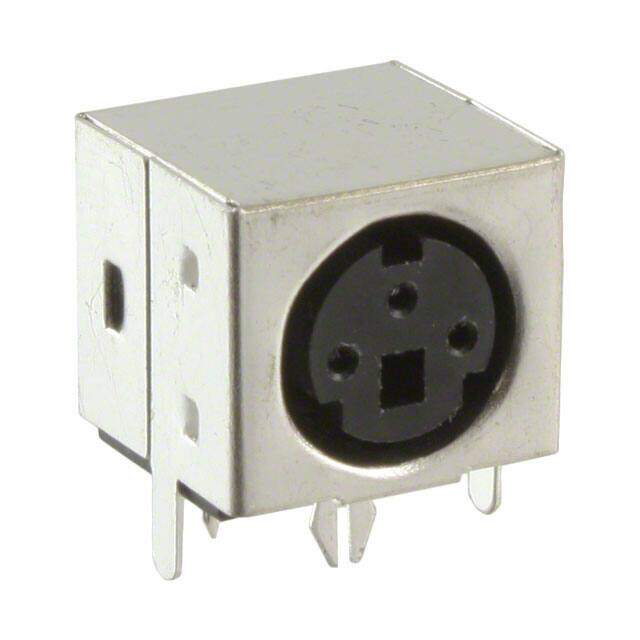

MD-30FC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
3 Pin, Mini Circular Connector, Fully Shielded, Ferrite Filter
PDF
/
Buying Options
Total Price: USD $3.44
Unit Price: USD $3.4408
≥1 USD $3.4408
≥10 USD $3.12752
≥100 USD $2.96208
≥500 USD $2.893
≥1000 USD $2.75528
≥3000 USD $2.410857
Inventory: 1026
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Shell Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2015
Series MD-FC
Feature Board Guide, Board Lock, Ground
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Sockets
Number of Positions 3
Voltage - Rated 100VAC 12VDC
Fastening Type Push-Pull
Subcategory DIN Connectors
Contact Finish - Mating Silver
DIN Conformance YES
Current Rating (Amps) 1A 2A
Total Number of Contacts 3
Orientation Keyed
Shielding Shielded
Current Rating 2A
Shell Size - Insert Mini DIN
Reliability COMMERCIAL
Body Length or Diameter 0.56 inch
Body Breadth 0.51 inch
Body Depth 0.52 inch
Contact Style RND PIN-SKT
Insulation Resistance 50000000Ohm
Polarization Key POLAR PIN POSITION
Dielectric Withstanding Voltage 250VAC V
Number of Ports 1
Durability 1000 Cycles
Dimensions
Length - Termination 0.14 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
