0915031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description

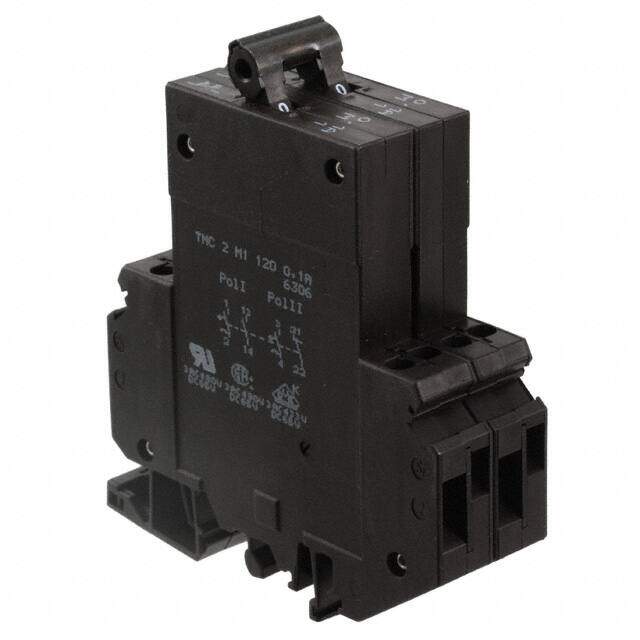

DIN Rail Terminal Blocks TMC 2 M1 120 0.1A
PDF
/
Buying Options
Total Price: USD $137.69
Unit Price: USD $137.6936
≥1 USD $137.6936
≥10 USD $132.94512
≥100 USD $131.89
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Technical
Series TMC
Part Status Active
Termination Screw
Connector Type Screw
Number of Positions 2
Max Operating Temperature 60°C
Min Operating Temperature -30°C
Color Black
Voltage - Rated DC 65V
Current Rating (Amps) 100mA
Current Rating 100mA
Voltage - Rated AC 250V
Number of Contacts 2
Actuator Type Lever
Number of Circuits 2
Max Current Rating 100mA
Wire Gauge (Max) 10 AWG
Wire Gauge (Min) 24 AWG
Number of Poles 2
Max Voltage Rating (DC) 65.25kV
Breaker Type Thermal Magnetic
Dimensions
Height 103.5mm
Length 83.5mm
Width 25mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
