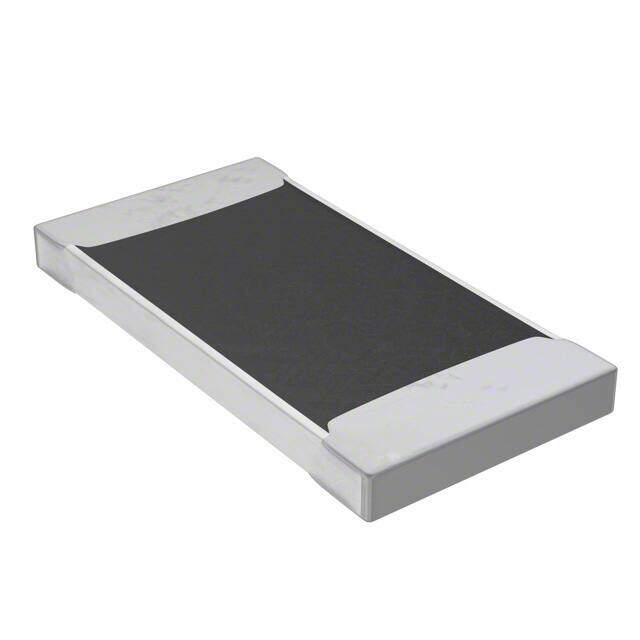

CSRL2512FK2L00
RoHS
RoHS compliant
RoHS compliantPackage 2512 (6432 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
RES SMD 2 MOHM 1% 2W 2512
PDF
/
Inventory: 9385
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.2004mm
Length 6.5024mm
Height Seated (Max) 0.037 0.95mm
Height 838.2μm
Technical
Max Power Dissipation 2W
Power (Watts) 2W
Composition Metal Element
Min Operating Temperature -55°C
Max Operating Temperature 170°C
Resistance 2mOhms
Temperature Coefficient ±50ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Current Sense, Moisture Resistant
Tolerance ±1%
Size / Dimension 0.256Lx0.126W 6.50mmx3.20mm
Series CSRL
Published 2000
Packaging Tape & Reel (TR)
Operating Temperature -55°C~170°C
Physical
Supplier Device Package 2512
Package / Case 2512 (6432 Metric)
